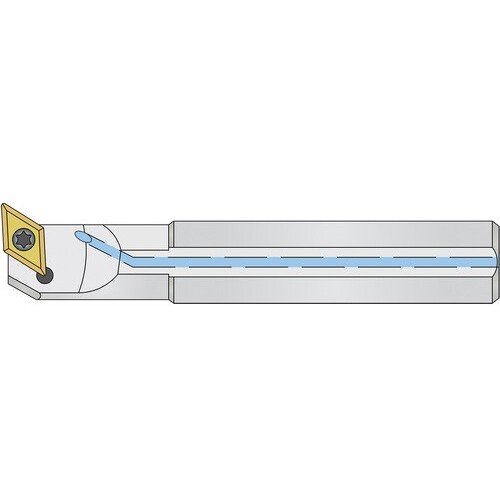

20-0902 5/16 Shank Dia × 4 OAL Coolant-Thru Profile Boring & Facing SDUCL - Uncoated
Int. Turning Tool ; 3.9″ OAL ; 5/16″ Shank Dia. ; 4″ LF ; 0.563″ Min Bore Dia. ; Steel
| Connection Diameter Machine Side (DCONMS) | 5/16″ | Coolant Supply Property (CSP) | Coolant Thru |
| Functional Length (LF) | 4″ | Shank Type | Square |
| Overall Length (OAL) | 3.9″ | Frontal Edge Angle | 107.5 Degrees |
| Functional Width (WF) | 0.425″ | Tool Type | Profile Boring & Facing|SDUC |
| Master Insert Identification (MIID) | 50-1200 | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 0.563″ | Style | A05H SDQCL 2 |
| Cutting Direction (HAND) | Left Hand | Measurement Type | Inch |
Product Features
| Country of Origin | India |
Shipping Info
Package Weight
0.116
