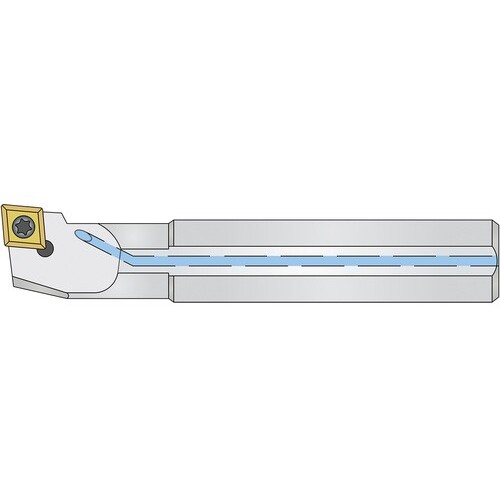

20-0824 5/16 Shank Dia × 4 OAL Coolant-Thru Boring & Facing SCLCL - Uncoated
Int. Turning Tool ; 3.9″ OAL ; 5/16″ Shank Dia. ; 4″ LF ; 0.38″ Min Bore Dia. ; Steel
| Connection Diameter Machine Side (DCONMS) | 5/16″ | Shank Type | Square |
| Functional Length (LF) | 4″ | Frontal Edge Angle | 5 Degrees |
| Overall Length (OAL) | 3.9″ | Tool Type | Boring & Facing|SCLC |
| Functional Width (WF) | 0.38″ | Body Material | Steel |
| Master Insert Identification (MIID) | 50-1100 | Style | A05H SCLCL 2 |
| Minimum Bore Diameter (DMIN) | 0.38″ | Measurement Type | Inch |
| Cutting Direction (HAND) | Left Hand | Axial Groove Outside Diameter Minimum (DAXN) | 0.007″ |
| Coolant Supply Property (CSP) | Coolant Thru |
Product Features
| Country of Origin | India |
Shipping Info
Package Weight
0.106
