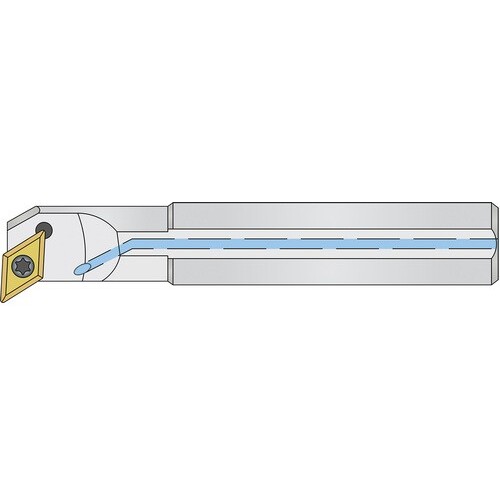

20-0931 3/8 Shank Dia × 4-1/2 OAL Coolant-Thru Profile Boring & Facing SDUCR - Uncoated
Int. Turning Tool ; 4-1/2″ OAL ; 3/8″ Shank Dia. ; 4-1/2″ LF ; 0.622″ Min Bore Dia. ; Steel
| Connection Diameter Machine Side (DCONMS) | 3/8″ | Coolant Supply Property (CSP) | Coolant Thru |
| Functional Length (LF) | 4-1/2″ | Shank Type | Square |
| Overall Length (OAL) | 4-1/2″ | Frontal Edge Angle | 93 Degrees |
| Functional Width (WF) | 0.49″ | Tool Type | SDUC|Profile Boring & Facing |
| Master Insert Identification (MIID) | 50-1200 | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 0.622″ | Style | A06J SDUCR 2 |
| Cutting Direction (HAND) | Right Hand | Measurement Type | Inch |
Product Features
| Country of Origin | India |
Shipping Info
Package Length
4.20000
Package Width
1.40000
Package Height
1.40000
Package Weight
0.166
