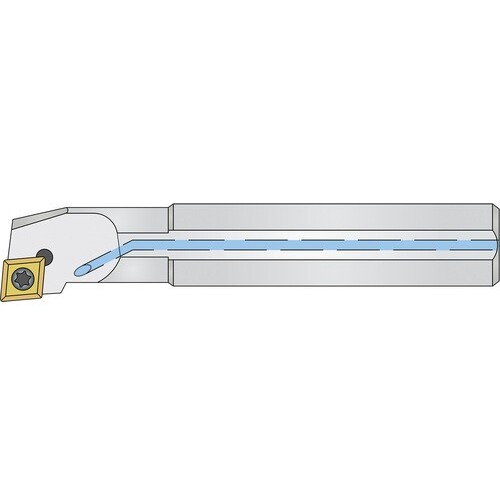

20-0825 3/8 Shank Dia × 4-1/2 OAL Coolant-Thru Boring & Facing SCLCR - Uncoated
Int. Turning Tool ; 4-1/2″ OAL ; 3/8″ Shank Dia. ; 4-1/2″ LF ; 0.49″ Min Bore Dia. ; Steel
| Connection Diameter Machine Side (DCONMS) | 3/8″ | Shank Type | Square |
| Functional Length (LF) | 4-1/2″ | Frontal Edge Angle | 5 Degrees |
| Overall Length (OAL) | 4-1/2″ | Tool Type | SCLC|Boring & Facing |
| Functional Width (WF) | 0.49″ | Body Material | Steel |
| Master Insert Identification (MIID) | 50-1100 | Style | A06J SCLCR 2 |
| Minimum Bore Diameter (DMIN) | 0.49″ | Measurement Type | Inch |
| Cutting Direction (HAND) | Right Hand | Axial Groove Outside Diameter Minimum (DAXN) | 0.03″ |
| Coolant Supply Property (CSP) | Coolant Thru |
Product Features
| Country of Origin | India |
Shipping Info
Package Weight
0.166
