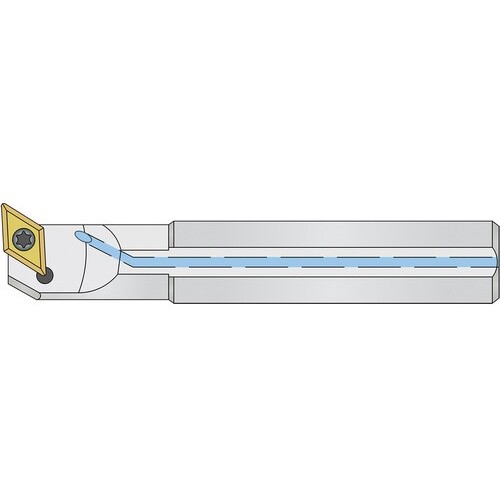

20-0934 1/2 Shank Dia × 5 OAL Coolant-Thru Profile Boring & Facing SDUCL - Uncoated
Int. Turning Tool ; 4.9″ OAL ; 1/2″ Shank Dia. ; 5″ LF ; 0.732″ Min Bore Dia. ; Steel
| Connection Diameter Machine Side (DCONMS) | 1/2″ | Coolant Supply Property (CSP) | Coolant Thru |
| Functional Length (LF) | 5″ | Shank Type | Square |
| Overall Length (OAL) | 4.9″ | Frontal Edge Angle | 93 Degrees |
| Functional Width (WF) | 0.605″ | Tool Type | SDUC|Profile Boring & Facing |
| Master Insert Identification (MIID) | 50-1200 | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 0.732″ | Style | A08K SDUCL 2 |
| Cutting Direction (HAND) | Left Hand | Measurement Type | Inch |
Product Features
| Country of Origin | India |
Shipping Info
Package Weight
0.288
