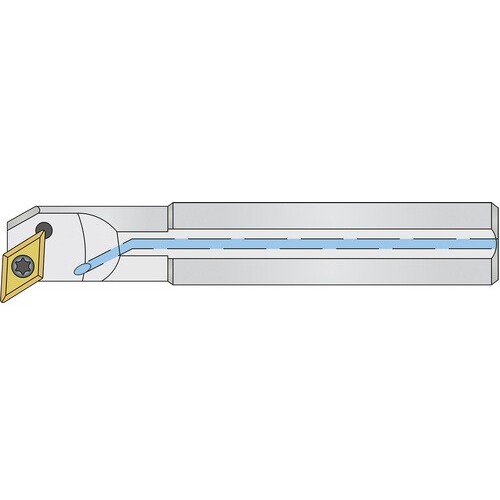

1/2RH 7DEG LEAD INDEX BB
Int. Turning Tool ; 4.9″ OAL ; 1/2″ Shank Dia. ; 5″ LF ; 0.732″ Min Bore Dia. ; Steel
| Connection Diameter Machine Side (DCONMS) | 1/2″ | Coolant Supply Property (CSP) | Coolant Thru |
| Functional Length (LF) | 5″ | Shank Type | Square |
| Overall Length (OAL) | 4.9″ | Frontal Edge Angle | 93 Degrees |
| Functional Width (WF) | 0.605″ | Tool Type | Profile Boring & Facing|SDUC |
| Master Insert Identification (MIID) | 50-1200 | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 0.732″ | Style | A08K SDUCR 2 |
| Cutting Direction (HAND) | Right Hand | Measurement Type | Inch |
Product Features
| Country of Origin | India |
Shipping Info
Package Length
5.24000
Package Width
.28000
Package Height
.28000
Package Weight
0.284
