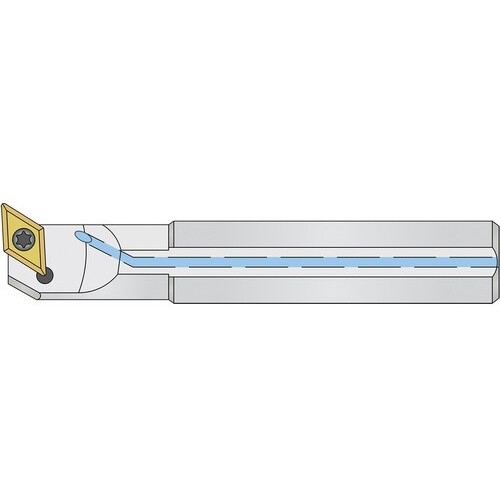

20-0936 5/8 Shank Dia × 6 OAL Coolant-Thru Profile Boring & Facing SDUCL - Uncoated
Int. Turning Tool ; 5.9″ OAL ; 5/8″ Shank Dia. ; 6″ LF ; 0.868″ Min Bore Dia. ; Steel
| Connection Diameter Machine Side (DCONMS) | 5/8″ | Coolant Supply Property (CSP) | Coolant Thru |
| Functional Length (LF) | 6″ | Shank Type | Square |
| Overall Length (OAL) | 5.9″ | Frontal Edge Angle | 93 Degrees |
| Functional Width (WF) | 0.775″ | Tool Type | SDUC|Profile Boring & Facing |
| Master Insert Identification (MIID) | 50-1200 | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 0.868″ | Style | A10M SDUCL 2 |
| Cutting Direction (HAND) | Left Hand | Measurement Type | Inch |
Product Features
| Country of Origin | India |
Shipping Info
Package Weight
0.524
