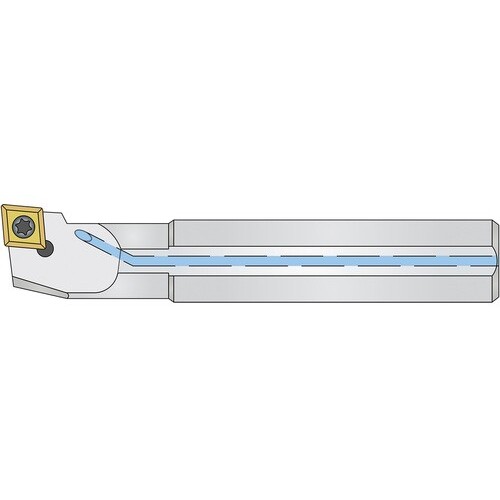

20-0855 3/4 Shank Dia × 7 OAL Coolant-Thru Boring & Facing SCLCR - Uncoated
Int. Turning Tool ; 7.1″ OAL ; 5/8″ Shank Dia. ; 7″ LF ; 0.925″ Min Bore Dia. ; Steel
| Connection Diameter Machine Side (DCONMS) | 5/8″ | Shank Type | Square |
| Functional Length (LF) | 7″ | Frontal Edge Angle | 5 Degrees |
| Overall Length (OAL) | 7.1″ | Tool Type | Boring & Facing|SCLC |
| Functional Width (WF) | 0.925″ | Body Material | Steel |
| Master Insert Identification (MIID) | 50-1105 | Style | A12Q SCLCL 3 |
| Minimum Bore Diameter (DMIN) | 0.925″ | Measurement Type | Inch |
| Cutting Direction (HAND) | Left Hand | Axial Groove Outside Diameter Minimum (DAXN) | 0.0485″ |
| Coolant Supply Property (CSP) | Coolant Thru |
Product Features
| Country of Origin | India |
Shipping Info
Package Weight
0.82
