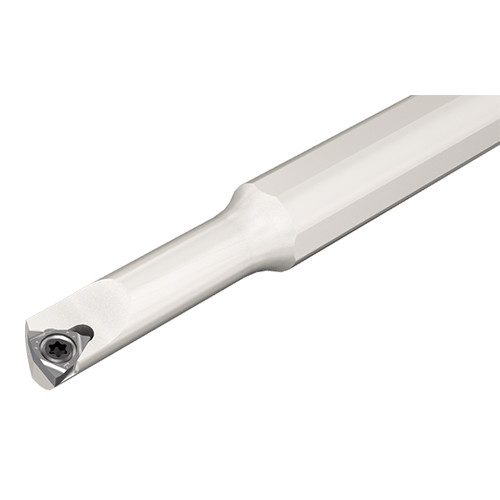

E-SWUBR 5-5
Int. Turning Tool ; 5″ OAL ; 0.291″ Shank Height ; 0.312″ Shank Dia. ; 5″ LF ; 1/3″ Min Bore Dia. ; Carbide

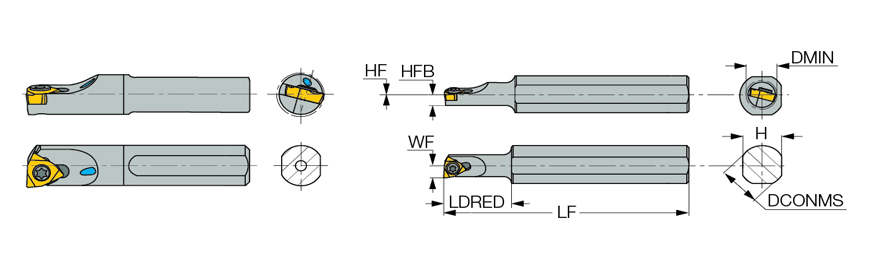

| Connection Diameter Machine Side (DCONMS) | 0.312″ | Shank Type | Round Shank w/3 Flats |
| Functional Length (LF) | 5″ | Application | | Int. 80° Trigon 93° Approach | |
| Overall Length (OAL) | 5″ | Rake Angle Axial (GAMP) | 0 Degrees |
| Shank Height (H) | 0.291″ | Rake Angle Radial (GAMF) | -12 Degrees |
| Functional Width (WF) | 0.16″ | Tool Type | Internal Indexble -Turn Tool |
| Master Insert Identification (MIID) | WB.. 520L | Body Material | Carbide |
| Minimum Bore Diameter (DMIN) | 1/3″ | Cutting Position | Internal |
| Cutting Direction (HAND) | Right Hand | Measurement Type | Inch |
| Coolant Supply Property (CSP) | Coolant Thru |
Product Features
| Family Description | Screw clamp miniature boring bars carrying small WBMT trigon inserts. S - Steel shank; E - Carbide shank with coolant hole. | Country of Origin | Israel |
Shipping Info
Package Length
5.00000
Package Width
1.22500
Package Height
1.22500
Package Weight
0.44
