E-STLPR 12-3

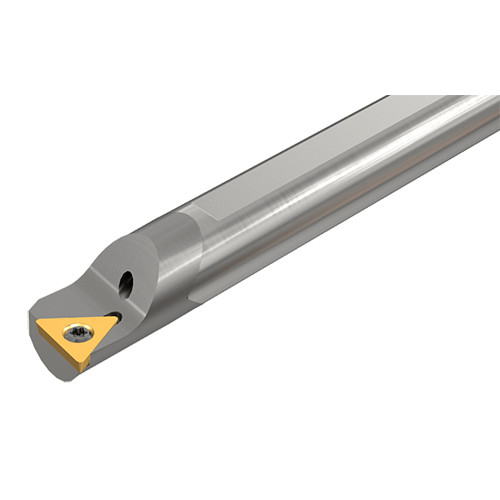

Int. Turning Tool ; 10″ OAL ; 3/4″ Shank Dia. ; 10″ LF ; 0.815″ Min Bore Dia. ; Carbide

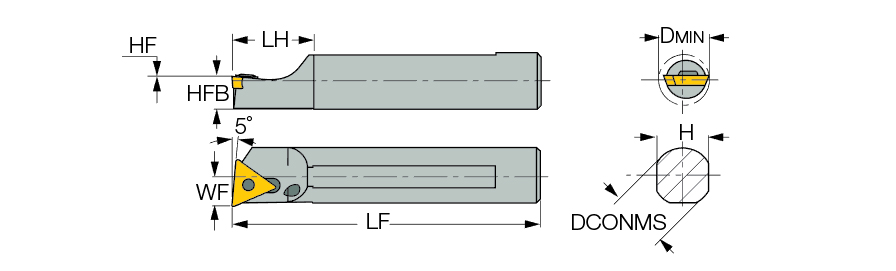

| Connection Diameter Machine Side (DCONMS) | 3/4″ | Shank Type | Round Shank w/3 Flats |
| Functional Length (LF) | 10″ | Application | | Int. 60° Triangle 95° Approach | |
| Overall Length (OAL) | 10″ | Rake Angle Axial (GAMP) | 5 Degrees |
| Functional Width (WF) | 0.42″ | Rake Angle Radial (GAMF) | 0 Degrees |
| Master Insert Identification (MIID) | TPMT 321 | Tool Type | Internal Indexble -Turn Tool |
| Minimum Bore Diameter (DMIN) | 0.815″ | Body Material | Carbide |
| Cutting Direction (HAND) | Right Hand | Measurement Type | Inch |
| Coolant Supply Property (CSP) | Coolant Thru |
Product Features
| Family Description | Screw lock boring bars for 11° clearance triangular inserts.A carbide shank with coolant holes. | Country of Origin | Israel |
Shipping Info
Package Length
11.00000
Package Width
1.50000
Package Height
1.50000
Package Weight
2.002
