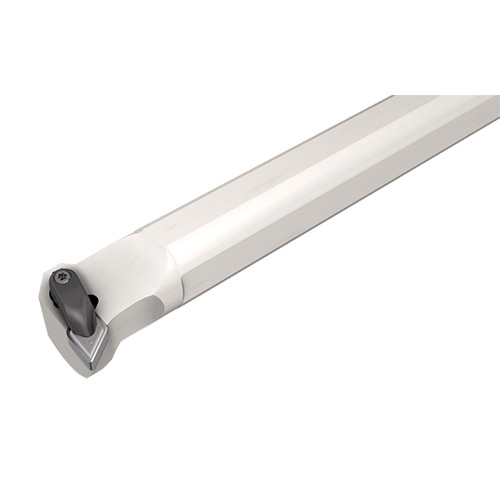

S-DDUNR 20-4
Int. Turning Tool ; 14″ OAL ; 1.14″ Shank Height ; 1-1/4″ Shank Dia. ; 1.654″ Min Bore Dia. ; Steel

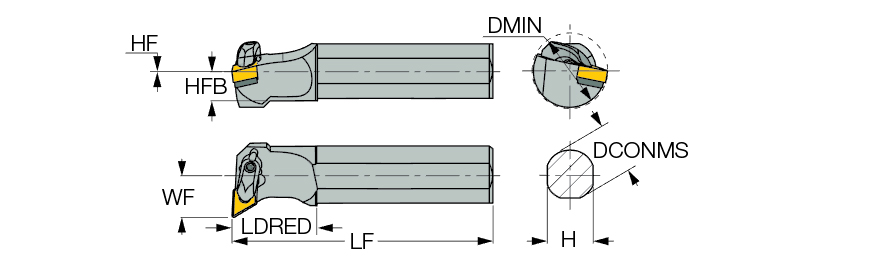

| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Coolant Supply Property (CSP) | External |
| Functional Length (LF) | 14″ | Shank Type | Round Shank w/3 Flats |
| Overall Length (OAL) | 14″ | Application | | Int. 55° Diamond 93 95° Approac | |
| Reduced Body Diameter Length (LDRED) | 1.77″ | Rake Angle Axial (GAMP) | -6 Degrees |
| Shank Height (H) | 1.14″ | Rake Angle Radial (GAMF) | -10 Degrees |
| Functional Width (WF) | 0.88″ | Tool Type | Internal Indexble -Turn Tool |
| Master Insert Identification (MIID) | DNMG 4.. | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 1.654″ | Cutting Position | Internal |
| Cutting Direction (HAND) | Right Hand | Measurement Type | Inch |
Product Features
| Family Description | R-clamp boring bars, for ISO negative DNMG inserts. | Country of Origin | Israel |
Shipping Info
Package Weight
4.663
