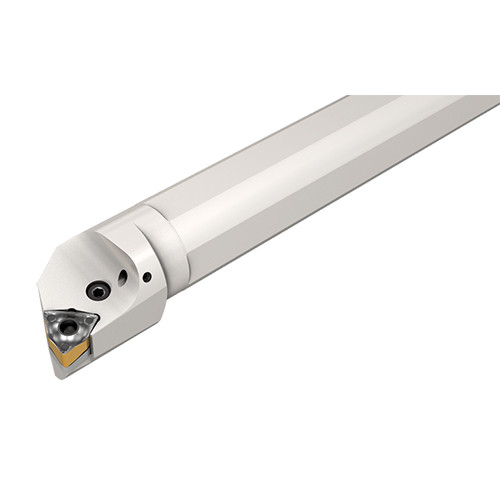

A-PWLNR 20-4X
Int. Turning Tool ; 12″ OAL ; 1.14″ Shank Height ; 1-1/4″ Shank Dia. ; 12″ LF ; 2.126″ Min Bore Dia. ; Steel

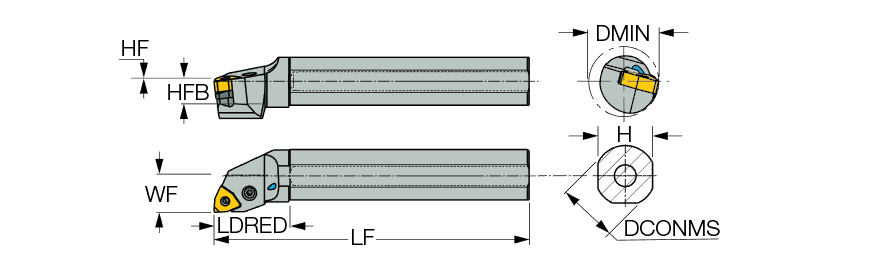

| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Coolant Supply Property (CSP) | Coolant Thru |
| Functional Length (LF) | 12″ | Shank Type | Round Shank w/3 Flats |
| Overall Length (OAL) | 12″ | Application | | Int. 80° Trigon 95° Approach | |
| Reduced Body Diameter Length (LDRED) | 2″ | Rake Angle Axial (GAMP) | -6 Degrees |
| Head Length (LH) | 2″ | Rake Angle Radial (GAMF) | -13 Degrees |
| Shank Height (H) | 1.14″ | Tool Type | Internal Indexble -Turn Tool |
| Functional Width (WF) | 0.77″ | Body Material | Steel |
| Master Insert Identification (MIID) | WNMX 45. WNMG 43. | Cutting Position | Internal |
| Minimum Bore Diameter (DMIN) | 2.126″ | Measurement Type | Inch |
| Cutting Direction (HAND) | Right Hand |
Product Features
| Family Description | Lever lock boring bars with coolant holes carrying HELITURN LD WNMX or WNMG trigon inserts, for heavy machining applications. | Country of Origin | Israel |
Shipping Info
Package Weight
3.536
