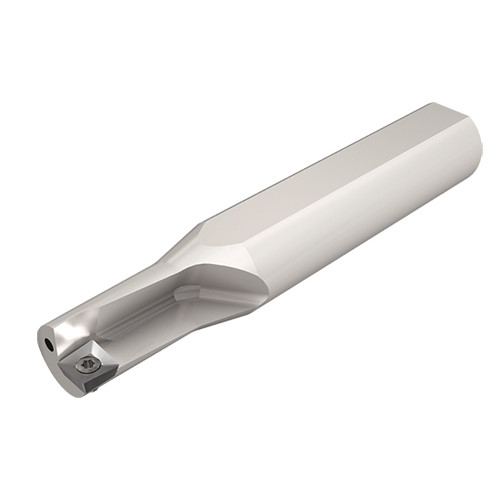

A12 SXFOR-105DR

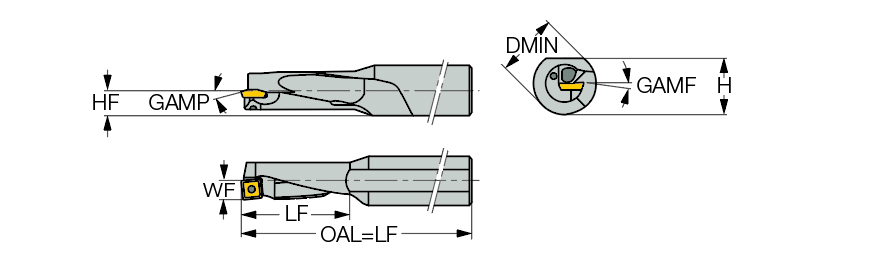

| Connection Diameter Machine Side (DCONMS) | 5/8″ | Application | | Drilling Ext Face Int. Turning | |
| Functional Length (LF) | 7″ | Rake Angle Axial (GAMP) | 0 Degrees |
| Shank Height (H) | 0.55″ | Rake Angle Radial (GAMF) | 0 Degrees |
| Functional Width (WF) | 0.24″ | Tool Type | Internal Indexble -Turn Tool |
| Master Insert Identification (MIID) | XOMT 06.. | Body Material | Steel |
| Coolant Supply Property (CSP) | Coolant Thru | Cutting Position | External |
| Shank Type | Round Shank w/3 Flats | Measurement Type | Inch |
Product Features
| Family Description | Boring and drilling bars with coolant holes carrying XOMT inserts. | Country of Origin | Israel |
Shipping Info
Package Weight
0.485
