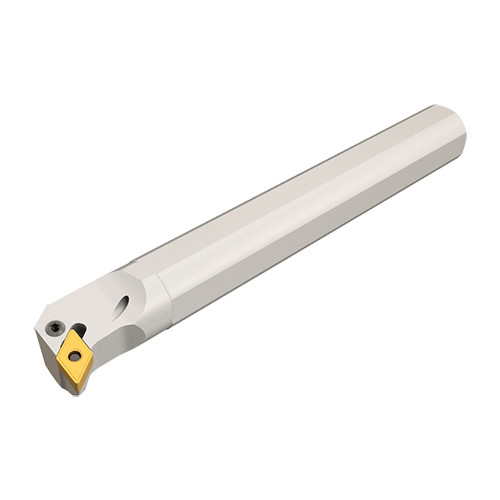

A20Q PDUNL-11
Int. Turning Tool ; 180 mm OAL ; 18 mm Shank Height ; 20 mm Shank Dia. ; 27 mm Min Bore Dia. ; Steel

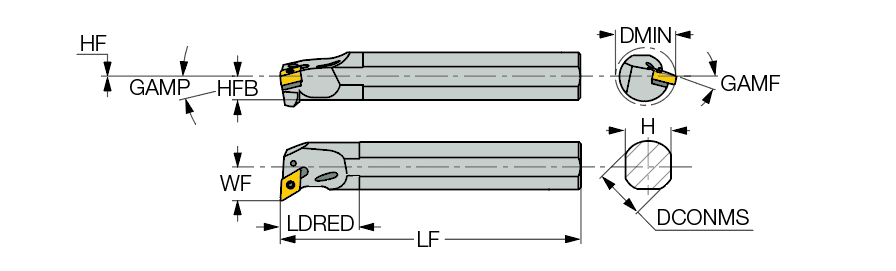

| Connection Diameter Machine Side (DCONMS) | 20 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Functional Length (LF) | 180 mm | Shank Type | Round Shank w/3 Flats |
| Overall Length (OAL) | 180 mm | Application | | Int. 55° Diamond 93 95° Approac | |
| Reduced Body Diameter Length (LDRED) | 35 mm | Rake Angle Axial (GAMP) | -6 Degrees |
| Shank Height (H) | 18 mm | Rake Angle Radial (GAMF) | -14 Degrees |
| Functional Width (WF) | 16 mm | Tool Type | Internal Indexble -Turn Tool |
| Master Insert Identification (MIID) | DNMG 1104 | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 27 mm | Cutting Position | Internal |
| Cutting Direction (HAND) | Left Hand | Measurement Type | Metric |
Product Features
| Family Description | Lever-lock boring bars carrying 55° negative rhombic inserts. S - Steel shank; A - Steel shank with a coolant hole. | Country of Origin | Israel |
Shipping Info
Package Weight
0.809
