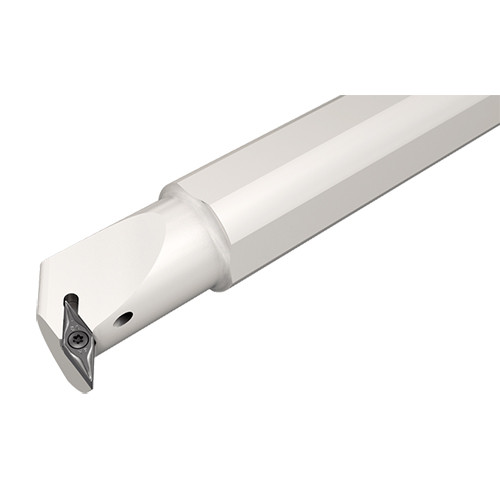

A-SVUNR 20-2.5
Int. Turning Tool ; 10″ OAL ; 1.142″ Shank Height ; 1-1/4″ Shank Dia. ; 10″ LF ; 1.46″ Min Bore Dia. ; Steel

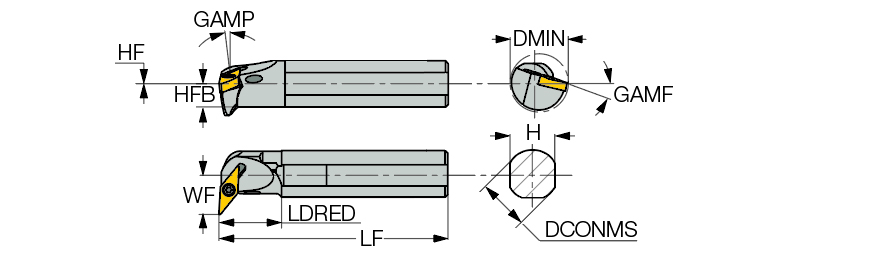

| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Coolant Supply Property (CSP) | Coolant Thru |
| Functional Length (LF) | 10″ | Shank Type | Round Shank w/3 Flats |
| Overall Length (OAL) | 10″ | Application | | Int. 35° Diamond 93° Approach | |
| Reduced Body Diameter Length (LDRED) | 1.97″ | Rake Angle Axial (GAMP) | -6 Degrees |
| Shank Height (H) | 1.142″ | Rake Angle Radial (GAMF) | -14 Degrees |
| Functional Width (WF) | 0.91″ | Tool Type | Internal Indexble -Turn Tool |
| Master Insert Identification (MIID) | VNMG 2.5.. | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 1.46″ | Cutting Position | Internal |
| Cutting Direction (HAND) | Right Hand | Measurement Type | Inch |
Product Features
| Family Description | Boring bars with internal coolant holes carrying 35° negative rhombic inserts. | Country of Origin | Israel |
| Remarks | For inserts with corner radius of .031 and larger, seat needs to be modified to ensure clearance. |
Shipping Info
Package Weight
2.764
