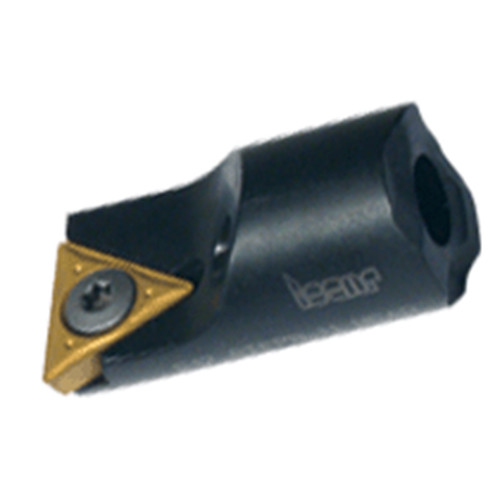

E-STLPL 8-2 HEAD
Int. Turning Tool ; 7″ OAL ; 0.23″ Shank Height ; 1/2″ Shank Dia. ; 0.547″ Min Bore Dia. ; Carbide

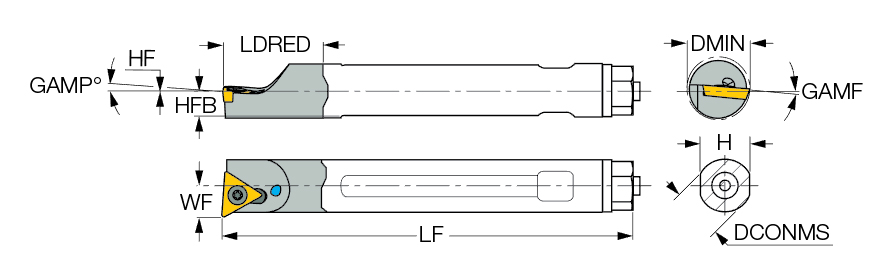

| Connection Diameter Machine Side (DCONMS) | 1/2″ | Coolant Supply Property (CSP) | Coolant Thru |
| Functional Length (LF) | 7″ | Shank Type | Round Shank w/3 Flats |
| Overall Length (OAL) | 7″ | Application | | Int. 60° Triangle 95° Approach | |
| Reduced Body Diameter Length (LDRED) | 0.98″ | Rake Angle Axial (GAMP) | 4 Degrees |
| Shank Height (H) | 0.23″ | Rake Angle Radial (GAMF) | -6 Degrees |
| Functional Width (WF) | 0.29″ | Tool Type | Internal Indexble -Turn Tool |
| Master Insert Identification (MIID) | TPMT 2-1-PF | Body Material | Carbide |
| Minimum Bore Diameter (DMIN) | 0.547″ | Measurement Type | Inch |
| Cutting Direction (HAND) | Left Hand |
Product Features
| Family Description | Interchangeable screw clamped boring heads for positive 11° clearance triangular inserts, mounted on carbide bars. | Country of Origin | Israel |
Shipping Info
Package Weight
0.073
