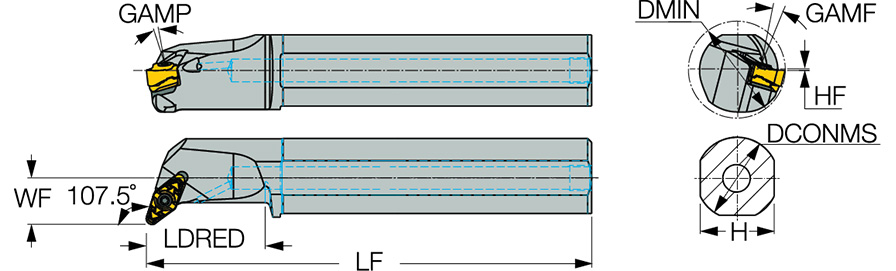

A40U SVQNL-22-AL-JHP
| Connection Diameter Machine Side (DCONMS) | 40 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Functional Length (LF) | 348.1 mm | Shank Type | Round Shank w/3 Flats |
| Reduced Body Diameter Length (LDRED) | 60 mm | Application | | Int. 35° Diamond 107.5°Approa | |
| Shank Height (H) | 36 mm | Rake Angle Axial (GAMP) | 14.5 Degrees |
| Functional Width (WF) | 23.4 mm | Rake Angle Radial (GAMF) | 6.5 Degrees |
| Master Insert Identification (MIID) | VNGU 220630-R3N | Tool Type | Internal Indexble -Turn Tool |
| Minimum Bore Diameter (DMIN) | 49 mm | Body Material | Steel |
| Cutting Direction (HAND) | Left Hand | Measurement Type | Metric |
Product Features
| Family Description | Screw lock boring bars carrying 35° rhombic inserts | Country of Origin | Israel |
Shipping Info
Package Weight
6.517
