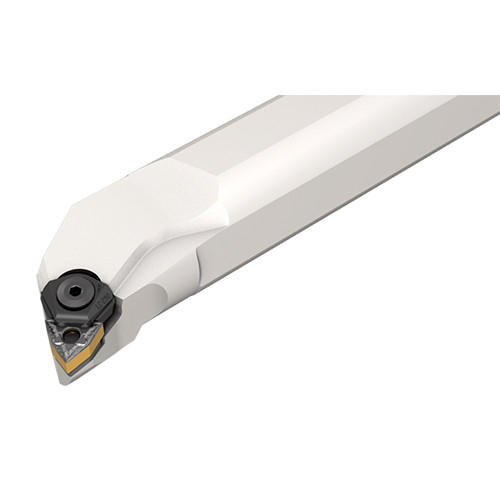

S-MWLNL 12-3W
Int. Turning Tool ; 10″ OAL ; 0.67″ Shank Height ; 3/4″ Shank Dia. ; 10″ LF ; 1″ Min Bore Dia. ; Steel

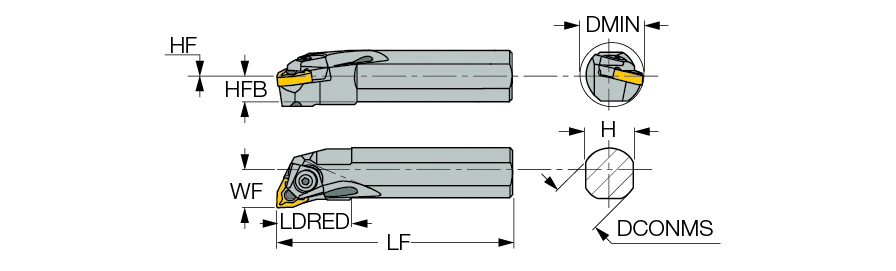

| Connection Diameter Machine Side (DCONMS) | 3/4″ | Coolant Supply Property (CSP) | External |
| Functional Length (LF) | 10″ | Shank Type | Round Shank w/3 Flats |
| Overall Length (OAL) | 10″ | Application | | Int. 80° Trigon 95° Approach | |
| Reduced Body Diameter Length (LDRED) | 1.1″ | Rake Angle Axial (GAMP) | -6 Degrees |
| Shank Height (H) | 0.67″ | Rake Angle Radial (GAMF) | -10 Degrees |
| Functional Width (WF) | 1/2″ | Tool Type | Internal Indexble -Turn Tool |
| Master Insert Identification (MIID) | WNMG 3.. | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 1″ | Cutting Position | Internal |
| Cutting Direction (HAND) | Left Hand | Measurement Type | Inch |
Product Features
| Family Description | Top-wedge-lock boring-bars carrying double-sided trigon inserts. S - Steel shank; A - Steel shank with coolant hole. | Country of Origin | India |
Shipping Info
Package Weight
1.115
