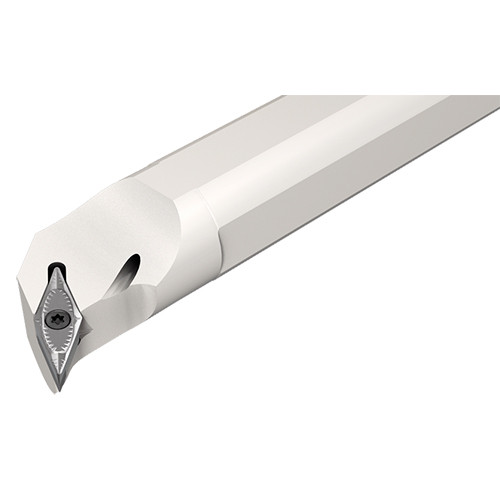

S25S SVQCR-16
Int. Turning Tool ; 250 mm OAL ; 23 mm Shank Height ; 25 mm Shank Dia. ; 250 mm LF ; 32 mm Min Bore Dia. ; Steel

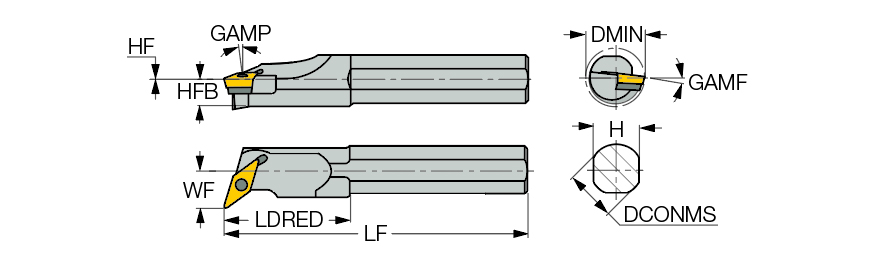

| Connection Diameter Machine Side (DCONMS) | 25 mm | Coolant Supply Property (CSP) | External |
| Functional Length (LF) | 250 mm | Shank Type | Round Shank w/3 Flats |
| Overall Length (OAL) | 250 mm | Application | | Int. 35° Diamond 107.5°Approa | |
| Reduced Body Diameter Length (LDRED) | 61 mm | Rake Angle Axial (GAMP) | 0 Degrees |
| Shank Height (H) | 23 mm | Rake Angle Radial (GAMF) | -5 Degrees |
| Functional Width (WF) | 17 mm | Tool Type | Internal Indexble -Turn Tool |
| Master Insert Identification (MIID) | VC.. 1604 | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 32 mm | Cutting Position | Internal |
| Cutting Direction (HAND) | Right Hand | Measurement Type | Metric |
Product Features
| Family Description | Screw lock boring bars carrying 35° rhombic inserts with 7° clearance. S - Steel shank; A - Steel shank with coolant hole. | Country of Origin | Israel |
Shipping Info
Package Weight
1.971
