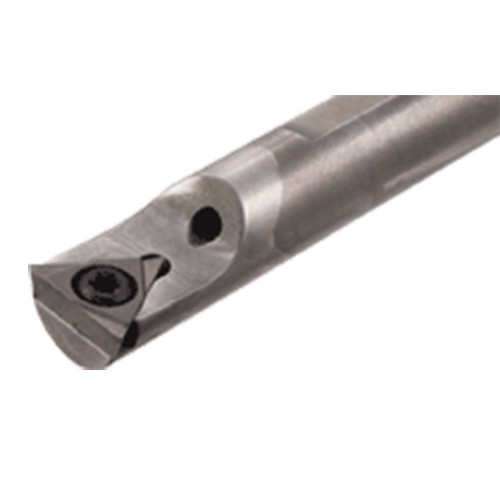

E16R STFPR-11X
Int. Turning Tool ; 200 mm OAL ; 14 mm Shank Height ; 16 mm Shank Dia. ; 200 mm LF ; 17.3 mm Min Bore Dia. ; Carbide

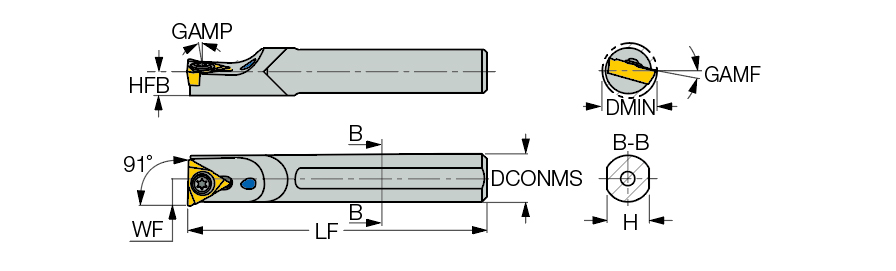

| Connection Diameter Machine Side (DCONMS) | 16 mm | Shank Type | E |
| Functional Length (LF) | 200 mm | Application | | Int. 60° Triangle 91° Approach | |
| Overall Length (OAL) | 200 mm | Rake Angle Axial (GAMP) | 3 Degrees |
| Shank Height (H) | 14 mm | Rake Angle Radial (GAMF) | -5 Degrees |
| Functional Width (WF) | 8.8 mm | Tool Type | Internal Indexble -Turn Tool |
| Master Insert Identification (MIID) | TPGX 1103 | Body Material | Carbide |
| Minimum Bore Diameter (DMIN) | 17.3 mm | Cutting Position | Internal |
| Cutting Direction (HAND) | Right Hand | Measurement Type | Metric |
| Coolant Supply Property (CSP) | Coolant Thru |
Product Features
| Family Description | Boring bars with steel (A) or carbide (E) shanks Carrying triangular TPGX 11° clearance inserts for small diameters. | Country of Origin | Israel |
Shipping Info
Package Weight
1.127
