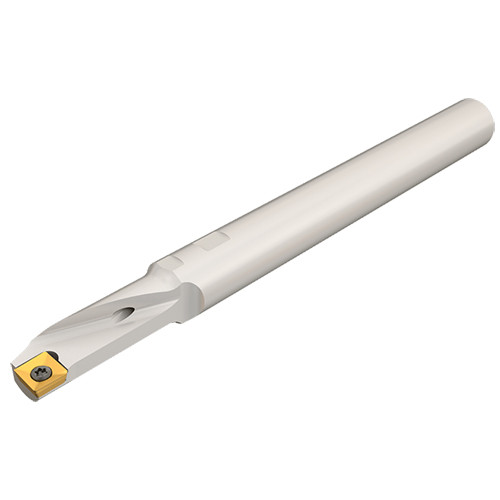

A10J SXFOR-06
Int. Turning Tool ; 110 mm OAL ; 4.7 mm Shank Height ; 10 mm Shank Dia. ; 10 mm Min Bore Dia. ; Steel

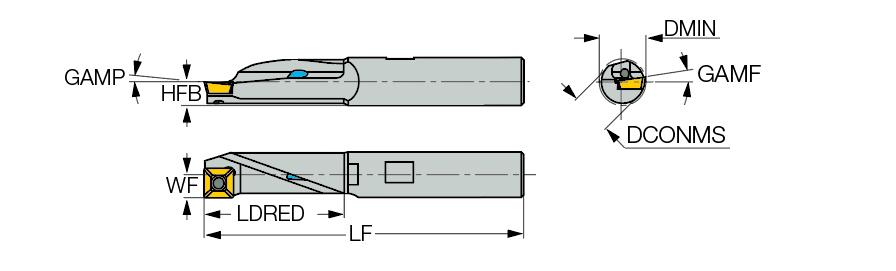

| Connection Diameter Machine Side (DCONMS) | 10 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Functional Length (LF) | 110 mm | Shank Type | Round Shank w/3 Flats |
| Overall Length (OAL) | 110 mm | Application | | Int. XOMT 88° Approach | |
| Reduced Body Diameter Length (LDRED) | 28.5 mm | Rake Angle Axial (GAMP) | 6 Degrees |
| Shank Height (H) | 4.7 mm | Rake Angle Radial (GAMF) | 1.8 Degrees |
| Functional Width (WF) | 4.9 mm | Tool Type | Internal Indexble -Turn Tool |
| Master Insert Identification (MIID) | XOMT 0602 | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 10 mm | Cutting Position | Internal |
| Cutting Direction (HAND) | Right Hand | Measurement Type | Metric |
Product Features
| Family Description | Boring bars with coolant holes carrying XOMT inserts. | Country of Origin | Israel |
Shipping Info
Package Weight
0.161
