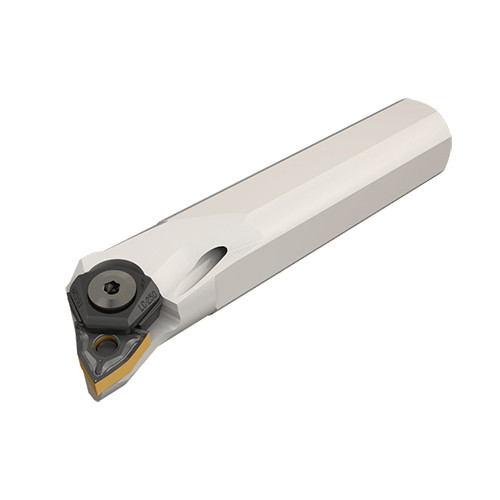

S40V MWLNR-08W
Int. Turning Tool ; 400 mm OAL ; 36 mm Shank Height ; 40 mm Shank Dia. ; 50 mm Min Bore Dia. ; Steel

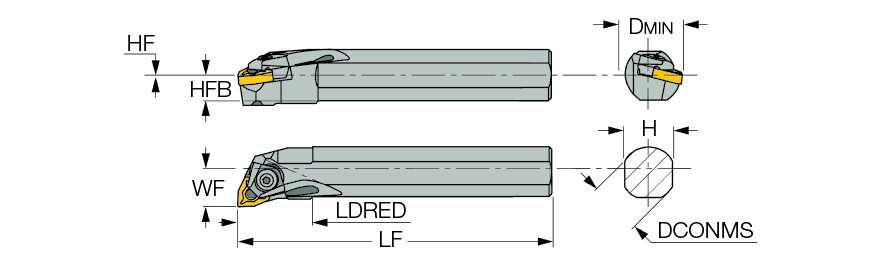

| Connection Diameter Machine Side (DCONMS) | 40 mm | Coolant Supply Property (CSP) | External |
| Functional Length (LF) | 400 mm | Shank Type | Round Shank w/3 Flats |
| Overall Length (OAL) | 400 mm | Application | | Int. 80° Trigon 95° Approach | |
| Reduced Body Diameter Length (LDRED) | 50 mm | Rake Angle Axial (GAMP) | -6 Degrees |
| Shank Height (H) | 36 mm | Rake Angle Radial (GAMF) | -10 Degrees |
| Functional Width (WF) | 27 mm | Tool Type | Internal Indexble -Turn Tool |
| Master Insert Identification (MIID) | WNMG 0804 | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 50 mm | Cutting Position | Internal |
| Cutting Direction (HAND) | Right Hand | Measurement Type | Metric |
Product Features
| Family Description | Top-wedge-lock boring-bars carrying double-sided trigon inserts. S - Steel shank; A - Steel shank with coolant hole | Country of Origin | Israel |
Shipping Info
Package Weight
8.084
