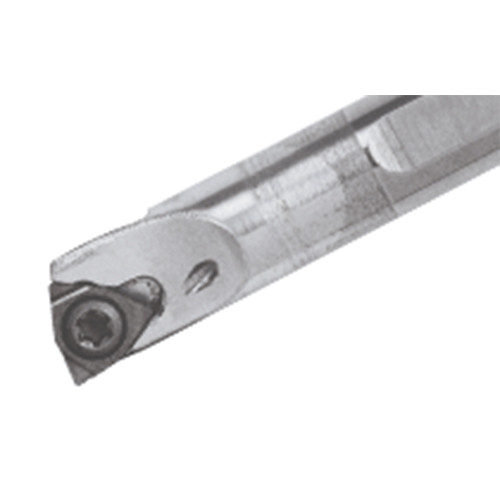

A06H SWUCR-02
Int. Turning Tool ; 100 mm OAL ; 5.4 mm Shank Height ; 6 mm Shank Dia. ; 6.6 mm Min Bore Dia. ; Steel

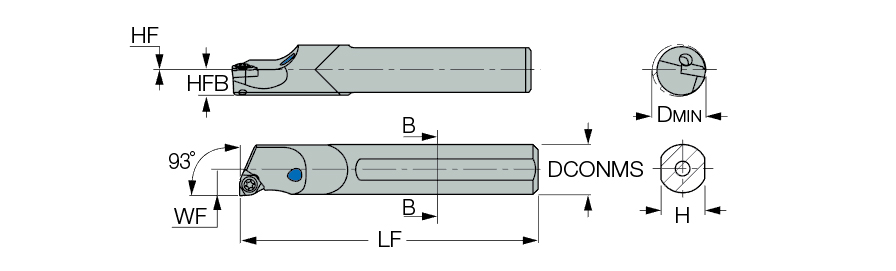

| Connection Diameter Machine Side (DCONMS) | 6 mm | Shank Type | Round Shank w/3 Flats |
| Functional Length (LF) | 100 mm | Application | | Int. 80° Trigon 93° Approach | |
| Overall Length (OAL) | 100 mm | Rake Angle Axial (GAMP) | 0 Degrees |
| Shank Height (H) | 5.4 mm | Rake Angle Radial (GAMF) | -15 Degrees |
| Functional Width (WF) | 3.3 mm | Tool Type | Internal Indexble -Turn Tool |
| Master Insert Identification (MIID) | WCGT 0201 | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 6.6 mm | Cutting Position | Internal |
| Cutting Direction (HAND) | Right Hand | Measurement Type | Metric |
| Coolant Supply Property (CSP) | Coolant Thru |
Product Features
| Family Description | Boring bars with steel (A) or carbide (E) shanks for small diameters using WCGT trigon inserts. | Country of Origin | Israel |
Shipping Info
Package Weight
0.084
