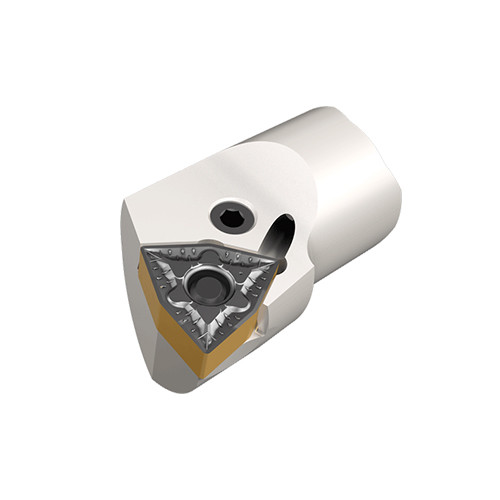

E16 PWLNR-06 HEAD
Int. Turning Tool ; 200 mm OAL ; 15 mm Shank Height ; 16 mm Shank Dia. ; 20 mm Min Bore Dia. ; Carbide

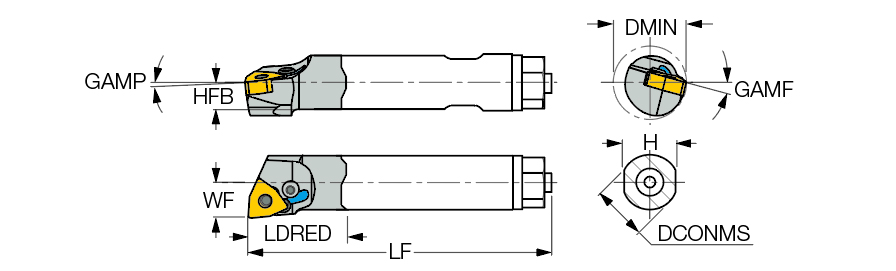

| Connection Diameter Machine Side (DCONMS) | 16 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Functional Length (LF) | 200 mm | Shank Type | Round Shank w/3 Flats |
| Overall Length (OAL) | 200 mm | Application | | Int. 80° Trigon 95° Approach | |
| Reduced Body Diameter Length (LDRED) | 37 mm | Rake Angle Axial (GAMP) | -14 Degrees |
| Shank Height (H) | 15 mm | Rake Angle Radial (GAMF) | -6 Degrees |
| Functional Width (WF) | 11 mm | Tool Type | Internal Indexble -Turn Tool |
| Master Insert Identification (MIID) | WNMG/WNGG 06T3 | Body Material | Carbide |
| Minimum Bore Diameter (DMIN) | 20 mm | Measurement Type | Metric |
| Cutting Direction (HAND) | Right Hand |
Product Features
| Family Description | Lever lock interchangeable boring heads clamped on a solid carbide shank carrying negative WNMG trigon inserts. | Country of Origin | Israel |
Shipping Info
Package Weight
0.117
