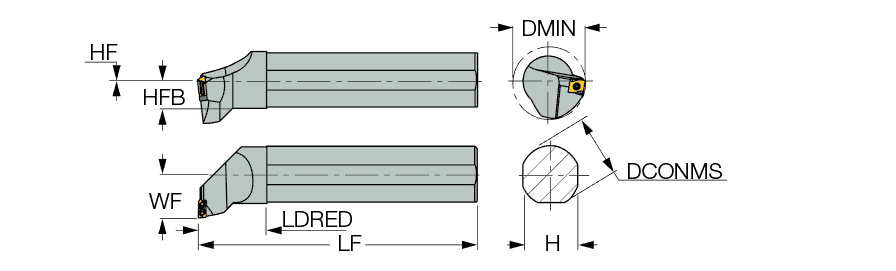

| Connection Diameter Machine Side (DCONMS) | 2″ | Coolant Supply Property (CSP) | External |
| Functional Length (LF) | 12″ | Shank Type | Round Shank w/3 Flats |
| Overall Length (OAL) | 16″ | Application | | Int. Tangential 93° Approach | |
| Reduced Body Diameter Length (LDRED) | 2.36″ | Rake Angle Axial (GAMP) | -6 Degrees |
| Shank Height (H) | 1.89″ | Rake Angle Radial (GAMF) | -10 Degrees |
| Functional Width (WF) | 1.46″ | Tool Type | Internal Indexble -Turn Tool |
| Master Insert Identification (MIID) | LNMX 150608L-HT | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 3.35″ | Cutting Position | Internal |
| Cutting Direction (HAND) | Right Hand | Measurement Type | Inch |

Product Features
| Family Description | Boring bars carrying the LNMX tangentially screw clamped inserts with 4 cutting edges for high metal removal rates. | Country of Origin | Israel |
| Remarks | Right-hand inserts for left-hand bars. Left-hand inserts for right-hand bars. |
Shipping Info
Package Weight
13.819
