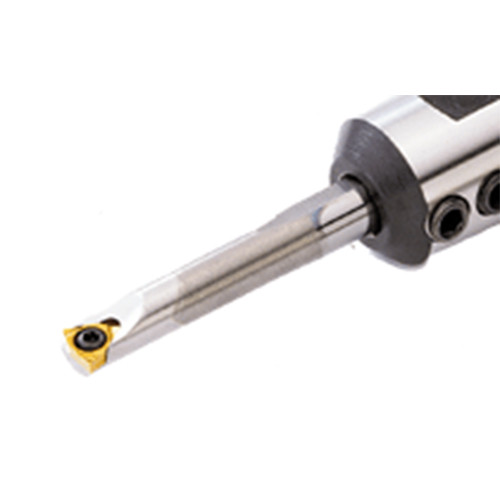

MG 08-SWUBL-06
Int. Turning Tool ; 2.835″ OAL ; 0.315″ Shank Dia. ; 0.343″ Min Bore Dia. ; Carbide

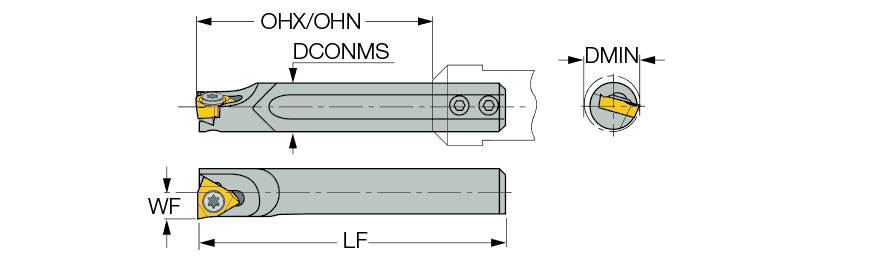

| Connection Diameter Machine Side (DCONMS) | 0.315″ | Shank Type | Round Shank w/3 Flats |
| Functional Length (LF) | 2.835″ | Application | | Int. 80° Trigon 93° Approach | |
| Overall Length (OAL) | 2.835″ | Rake Angle Axial (GAMP) | 0 Degrees |
| Functional Width (WF) | 0.169″ | Rake Angle Radial (GAMF) | -12 Degrees |
| Master Insert Identification (MIID) | WBMT 020102L/R | Tool Type | Internal Indexble -Turn Tool |
| Minimum Bore Diameter (DMIN) | 0.343″ | Body Material | Carbide |
| Cutting Direction (HAND) | Left Hand | Cutting Position | Internal |
| Coolant Supply Property (CSP) | External | Measurement Type | Inch |
Product Features
| Family Description | Solid carbide bars for internal turning Dmin .26″. | Country of Origin | Israel |
| Remarks | Use right-hand WBMT 52...R inserts on left-hand tools and left-hand WBMT 52...L inserts on right-hand tools |
Shipping Info
Package Weight
0.146
