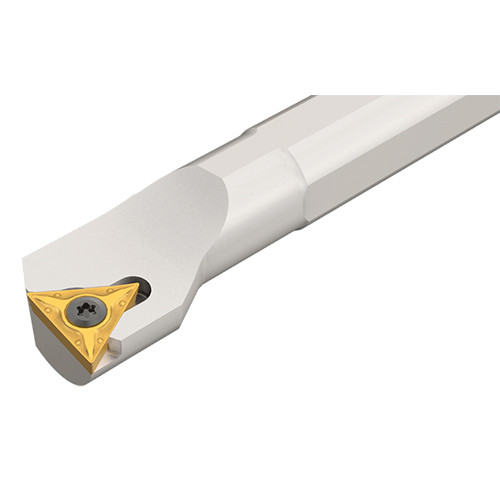

S10K STFCR-11
Int. Turning Tool ; 125 mm OAL ; 9 mm Shank Height ; 10 mm Shank Dia. ; 13 mm Min Bore Dia. ; Steel

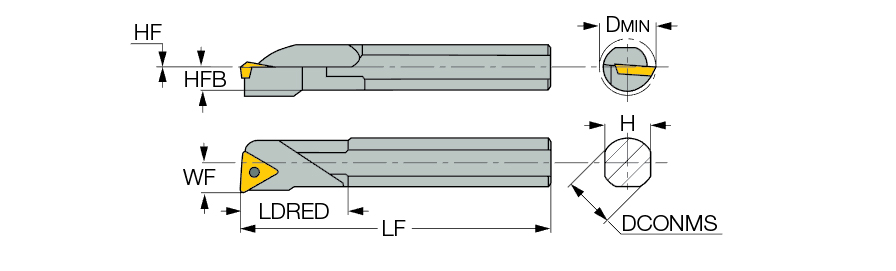

| Connection Diameter Machine Side (DCONMS) | 10 mm | Shank Type | Round Shank w/3 Flats |
| Functional Length (LF) | 125 mm | Application | | Int. 60° Triangle 91° Approach | |
| Overall Length (OAL) | 125 mm | Rake Angle Axial (GAMP) | 0 Degrees |
| Reduced Body Diameter Length (LDRED) | 29 mm | Rake Angle Radial (GAMF) | -9 Degrees |
| Shank Height (H) | 9 mm | Tool Type | Internal Indexble -Turn Tool |
| Functional Width (WF) | 7 mm | Body Material | Steel |
| Master Insert Identification (MIID) | TC.. 1102 | Cutting Position | Internal |
| Minimum Bore Diameter (DMIN) | 13 mm | Measurement Type | Metric |
| Cutting Direction (HAND) | Right Hand |
Product Features
| Family Description | Screw lock boring bars carrying 7° clearance triangular inserts. | Country of Origin | Israel |
Shipping Info
Package Weight
0.216
