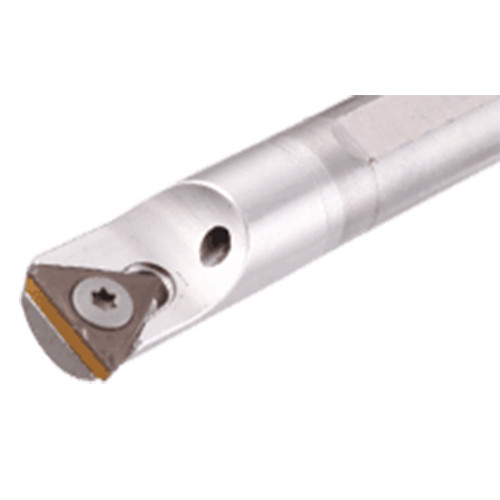

S12K STFPL-11
Int. Turning Tool ; 125 mm OAL ; 11 mm Shank Height ; 12 mm Shank Dia. ; 11 mm Min Bore Dia. ; Steel

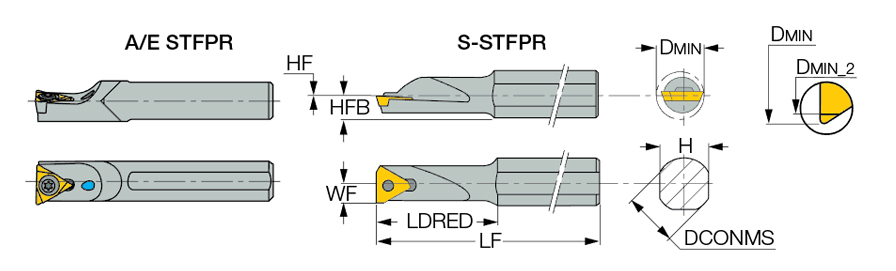

| Connection Diameter Machine Side (DCONMS) | 12 mm | Shank Type | Round Shank w/3 Flats |
| Functional Length (LF) | 125 mm | Application | | Int. 60° Triangle 91° Approach | |
| Overall Length (OAL) | 125 mm | Rake Angle Axial (GAMP) | 3 Degrees |
| Reduced Body Diameter Length (LDRED) | 35 mm | Rake Angle Radial (GAMF) | 0 Degrees |
| Shank Height (H) | 11 mm | Minimum Bore Diameter_2 (DMIN_2) | 11 mm |
| Functional Width (WF) | 5.6 mm | Tool Type | Internal Indexble -Turn Tool |
| Master Insert Identification (MIID) | TPMT 11.. | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 11 mm | Cutting Position | Internal |
| Cutting Direction (HAND) | Left Hand | Measurement Type | Metric |
| Coolant Supply Property (CSP) | External |
Product Features
| Family Description | Screw lock boring bars carrying triangular inserts with 11° clearance. S - Steel shank; A - Steel shank with coolant hole; E - Carbide shank with coolant hole. | Country of Origin | Israel |
| Remarks | (a1) When used with insert TPG. 110204-XL (a2) When used with insert TP.. 110204-.. |
Shipping Info
Package Weight
0.265
