S24V-SVUCR-3

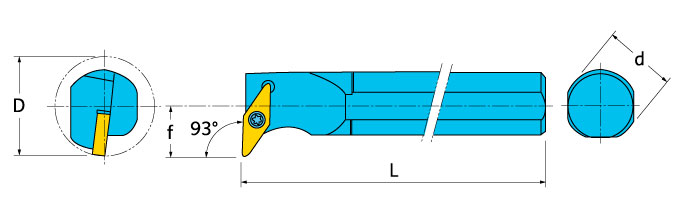

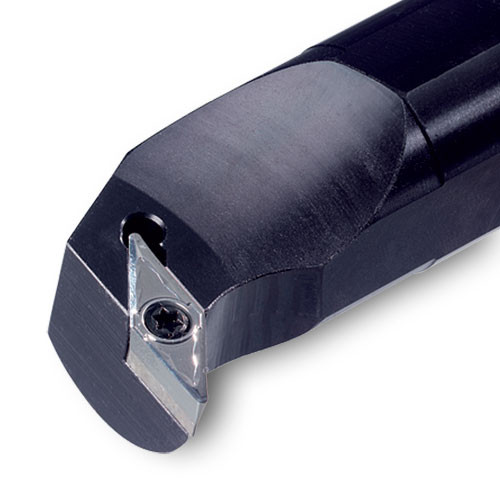

Int. Turning Tool; 1-1/2″ Shank Dia. × 16″ LF × 16″ OAL × 2-1/4″ Min. Bore Dia. ; Steel
| Connection Diameter Machine Side (DCONMS) | 1-1/2″ | Coolant Supply Property (CSP) | Coolant Thru |
| Functional Length (LF) | 16″ | Shank Type | Round Shank w/3 Flats |
| Functional Width (WF) | 1-1/8″ | Frontal Edge Angle | 93 Degrees |
| Minimum Bore Diameter (DMIN) | 2-1/4″ | Body Material | Steel |
| Cutting Direction (HAND) | Right Hand | Measurement Type | Inch |
Product Features
| Country of Origin | Spain |
Shipping Info
Package Weight
0.000
