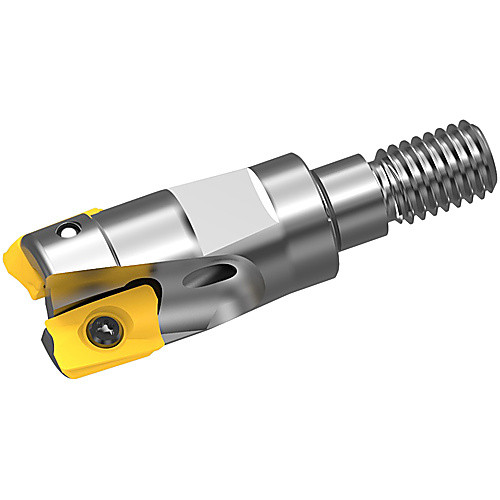

APX3000UR102AM08A30 INDX END MILL
Indexable End Mill; 5/8″ Dia. × 0.394″ LOC × 0.335″ Shank Dia. × 1.89″ OAL ; 2 FL ; 90 Degrees ; Series APX3000_INCH
| Cutting Diameter (DC/DCX) | 5/8″ | Flute Count (NOF) | 2 |
| Cutting Diameter (DC) | 5/8″ | Body Diameter (BD) | 0.512″ |
| Cutting Item Count (CICT) | 2 | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Depth of Cut Maximum (APMX) | 0.394″ | Cutting Direction (HAND) | Right Hand |
| Overall Length (OAL) | 1.89″ | Series/List # | APX3000_INCH |
| Connection Diameter Machine Side (DCONMS) | 0.335″ | Measurement Type | Inch |
| Functional Length (LF) | 1.181″ | Connection Retention Knob Thread Size (CRKS) | M8 |
Product Features
| Country of Origin | USA |
