A20R-STFCR16-D220
Int. Turning Tool ; 12″ OAL ; 18 mm Shank Height ; 20 mm Shank Dia. ; 200 mm LF ; Steel

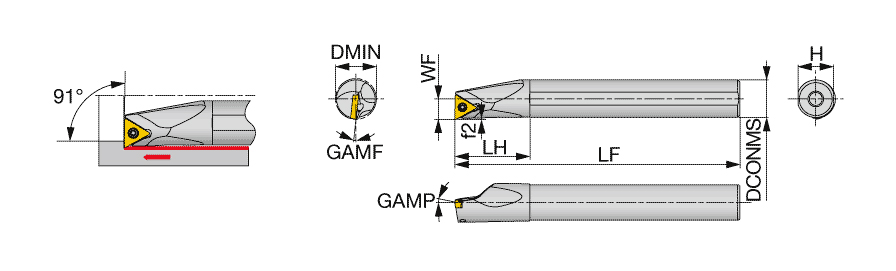

| Connection Diameter Machine Side (DCONMS) | 20 mm | Cutting Direction (HAND) | Right Hand |
| Functional Length (LF) | 200 mm | Coolant Supply Property (CSP) | Through Hole |
| Overall Length (OAL) | 12″ | Shank Type | Round Shank w/3 Flats |
| Reduced Body Diameter Length (LDRED) | 200 mm | Rake Angle Axial (GAMP) | 0 Degrees |
| Shank Height (H) | 18 mm | Rake Angle Radial (GAMF) | -7 Degrees |
| Functional Width (WF) | 11 mm | Tool Type | Internal Indexble -Turn Tool |
| Master Insert Identification (MIID) | VBMT | Body Material | Steel |
Product Features
| Family Description | StreamJetBar series, Screw-on boring bars for Posi triangle insert with 7 deg clearance | Country of Origin | Japan |
| Remarks | When using a right or left hand insert, the right hand insert (R) is used for the left hand toolholders (STFCL** type), and the left hand insert (L) is used for the right hand toolholders (STFCR** type). Torque:Recommended torque (Nm) for clamping. |
Shipping Info
Package Weight
0.997
