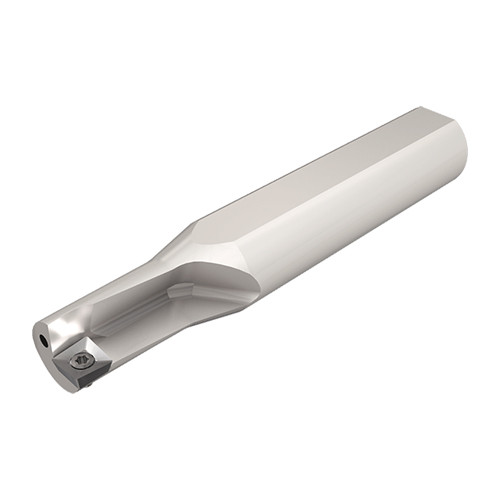

A1612M SXFOR-06DR

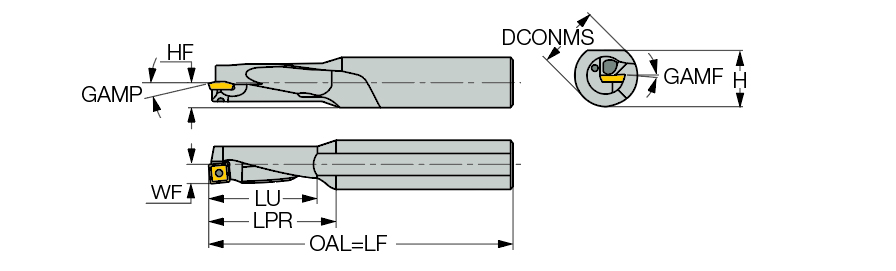

| Connection Diameter Machine Side (DCONMS) | 16 mm | Application | | Drilling Ext Face Int. Turning | |
| Functional Length (LF) | 180 mm | Rake Angle Axial (GAMP) | 0 Degrees |
| Shank Height (H) | 15 mm | Rake Angle Radial (GAMF) | 0 Degrees |
| Functional Width (WF) | 6 mm | Tool Type | Multifunction drilling, turning and grooving tools |
| Master Insert Identification (MIID) | XOMT 06.. | Body Material | Steel |
| Shank Type | Round Shank w/3 Flats | Measurement Type | Metric |
Product Features
| Family Description | Boring and drilling bars with coolant holes carrying XOMT inserts. | Country of Origin | Israel |
Shipping Info
Package Weight
0.540
