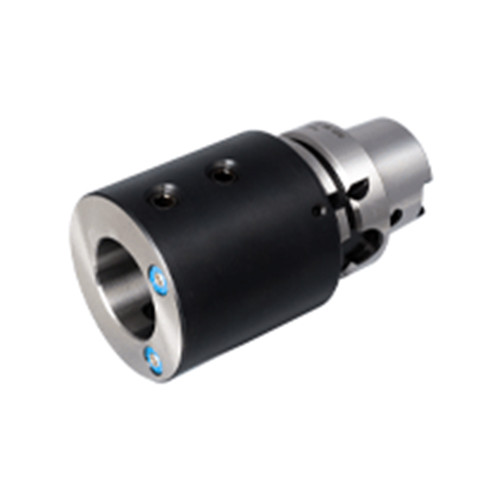

HSK A63WH-ABB 1-1/2
Int. Turning Tool ; 5.394″ OAL ; 2.48″ Shank Dia. ; Steel

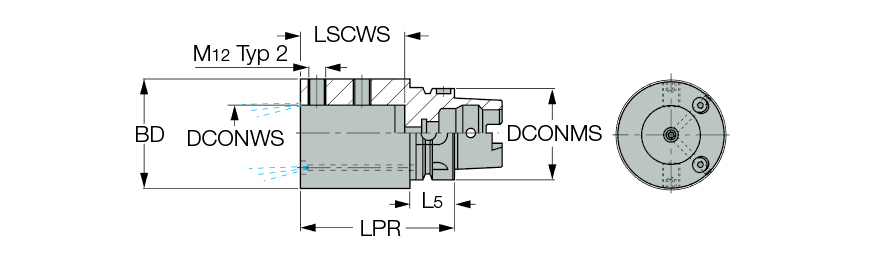

| Connection Diameter Machine Side (DCONMS) | 2.48″ | Connection Diameter Workpiece Side (DCONWS) | 1-1/2″ |
| Overall Length (OAL) | 5.394″ | Tool Type | HSK -T (ISO 12164-3) |
| Body Diameter (BD) | 2.953″ | Body Material | Steel |
| Shank Type | Round Shank w/3 Flats | Measurement Type | Inch |
Product Features
| Family Description | Adapters with HSK exchangeable shanks for boring bars with reduction sleeves. | Country of Origin | Italy |
| Remarks | Complies with ICTM standard (ISO 12164-3) A cooling tube must be used with all coolant through HSK spindles (should be ordered separately) For shank dimensions, click on More Info |
Shipping Info
Package Weight
6.058
