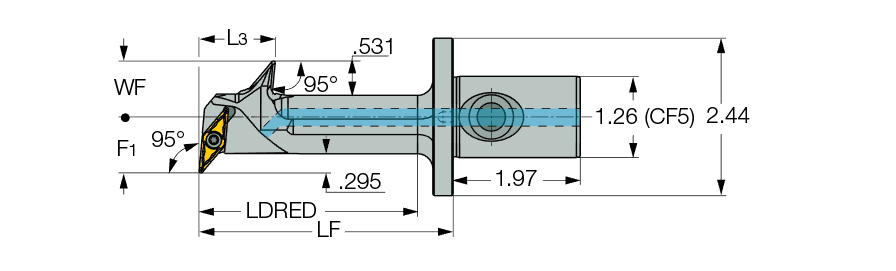

CF5 A-SVXCR-16X2
| Connection Diameter Machine Side (DCONMS) | 2.441″ | Coolant Supply Property (CSP) | Through Hole |
| Functional Length (LF) | 12″ | Shank Type | CLICKFIT |
| Overall Length (OAL) | 5.906″ | Application | | Int. 35° Diamond 95° Approach | Int. Machining Aluminum Wheels | |
| Reduced Body Diameter Length (LDRED) | 3.386″ | Tool Type | Internal Indexble -Turn Tool |
| Functional Width (WF) | 0.866″ | Body Material | Steel |
| Master Insert Identification (MIID) | VCGT 160401-AS | Cutting Position | Internal |
| Minimum Bore Diameter (DMIN) | 1.772″ | Measurement Type | Inch |
| Cutting Direction (HAND) | Right Hand |
Product Features
| Family Description | Double pocket boring heads for VCGT 1604.. inserts and a CLICKFIT CF5 adaptation for machining aluminum wheels. | Country of Origin | Israel |
Shipping Info
Package Weight
2.050
