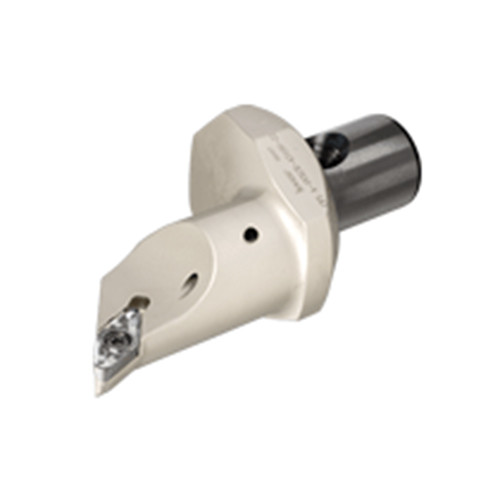

CF5 A-SVXCR-43100-22
Int. Turning Tool ; 5.906″ OAL ; 2.441″ Shank Dia. ; 1.575″ Min Bore Dia. ; Steel

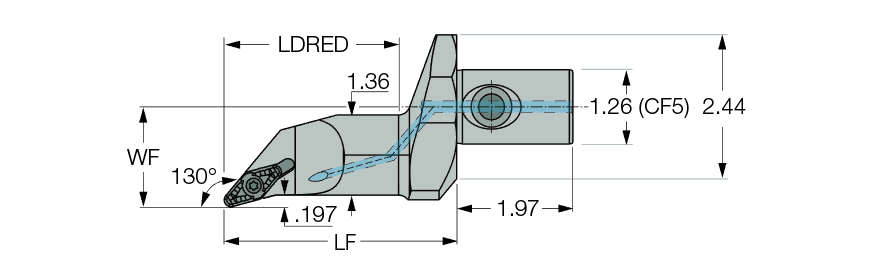

| Connection Diameter Machine Side (DCONMS) | 2.441″ | Shank Type | CLICKFIT |
| Overall Length (OAL) | 5.906″ | Application | | Int. Machining Aluminum Wheels | |
| Reduced Body Diameter Length (LDRED) | 2.953″ | Tool Type | Internal Indexble -Turn Tool |
| Functional Width (WF) | 1.693″ | Body Material | Steel |
| Master Insert Identification (MIID) | VCGT 220530-AS | Cutting Position | Internal |
| Minimum Bore Diameter (DMIN) | 1.575″ | Measurement Type | Inch |
| Cutting Direction (HAND) | Right Hand | Connection Code Machine Side (CCMS) | CLICKFIT |
| Coolant Supply Property (CSP) | Coolant Thru |
Product Features
| Family Description | Boring heads for VCGT 2205 inserts and a CLICKFIT CF5 adaptation for machining aluminum wheels. | Country of Origin | Israel |
Shipping Info
Package Weight
2.733
