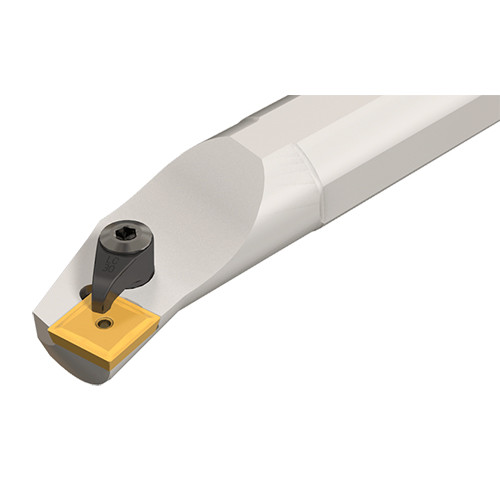

S25S CSKPR-12
Int. Turning Tool ; 250 mm OAL ; 23 mm Shank Height ; 25 mm Shank Dia. ; 30 mm Min Bore Dia. ; Steel

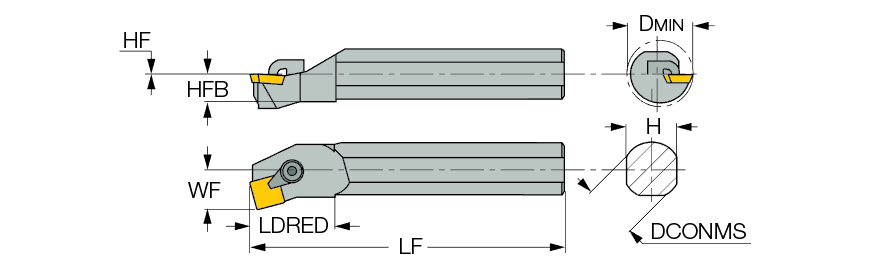

| Connection Diameter Machine Side (DCONMS) | 25 mm | Shank Type | Round Shank w/3 Flats |
| Functional Length (LF) | 250 mm | Application | | Int. Square 75° Approach | |
| Overall Length (OAL) | 250 mm | Rake Angle Axial (GAMP) | 5 Degrees |
| Reduced Body Diameter Length (LDRED) | 48 mm | Rake Angle Radial (GAMF) | 0 Degrees |
| Shank Height (H) | 23 mm | Tool Type | Internal Indexble -Turn Tool |
| Functional Width (WF) | 17 mm | Body Material | Steel |
| Master Insert Identification (MIID) | SPMR 120304 | Cutting Position | Internal |
| Minimum Bore Diameter (DMIN) | 30 mm | Measurement Type | Metric |
| Cutting Direction (HAND) | Right Hand |
Product Features
| Family Description | Clamp lock boring bars carrying 11° clearance square inserts. | Country of Origin | Israel |
Shipping Info
Package Weight
2.024
