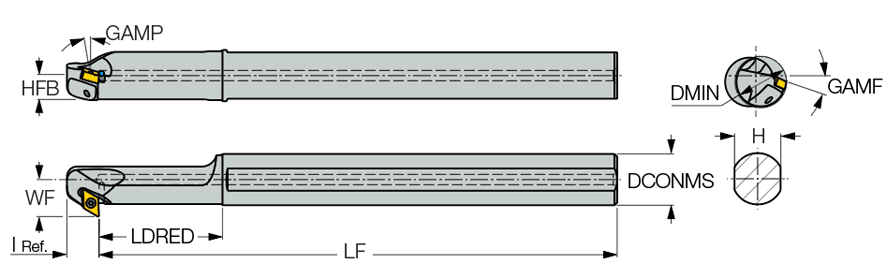

A16Q SDZNR-07
Int. Turning Tool ; 193 mm OAL ; 15 mm Shank Height ; 16 mm Shank Dia. ; 16 mm Min Bore Dia. ; Steel
| Connection Diameter Machine Side (DCONMS) | 16 mm | Shank Type | Round Shank w/3 Flats |
| Overall Length (OAL) | 193 mm | Application | | Int. 55° Diamod 93° Back Appro | |
| Reduced Body Diameter Length (LDRED) | 43 mm | Rake Angle Axial (GAMP) | -10 Degrees |
| Shank Height (H) | 15 mm | Rake Angle Radial (GAMF) | -12.5 Degrees |
| Functional Width (WF) | 12.5 mm | Tool Type | Internal Indexble -Turn Tool |
| Master Insert Identification (MIID) | DNGP 070302R-F2M | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 16 mm | Cutting Position | Internal |
| Cutting Direction (HAND) | Right Hand | Measurement Type | Metric |
| Coolant Supply Property (CSP) | Coolant Thru |
Product Features
| Family Description | Back turning Boring bars with steel and carbide shanks carrying DNGP 0703.. 55° rhombic inserts with negative and positive alternating flanks that enabled bar design with a firm insert clamping and small minimum diameter. | Country of Origin | Japan |
| Remarks | Use right-hand inserts on right-hand bars and vice versa. A - steel shank with coolant hole, E - carbide shank with coolant hole. |
Shipping Info
Package Weight
0.612
