A16Q SDXNR-07
Int. Turning Tool ; 180 mm OAL ; 15 mm Shank Height ; 16 mm Shank Dia. ; 20 mm Min Bore Dia. ; Steel

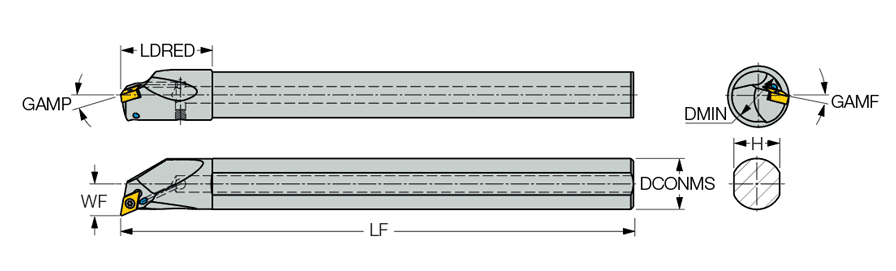

| Connection Diameter Machine Side (DCONMS) | 16 mm | Shank Type | Round Shank w/3 Flats |
| Overall Length (OAL) | 180 mm | Application | | Int. 55° Diamond 100° Approach | |
| Reduced Body Diameter Length (LDRED) | 32 mm | Rake Angle Axial (GAMP) | -13 Degrees |
| Shank Height (H) | 15 mm | Rake Angle Radial (GAMF) | -13 Degrees |
| Functional Width (WF) | 10.6 mm | Tool Type | Internal Indexble -Turn Tool |
| Master Insert Identification (MIID) | DNGP 070302L-F2M | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 20 mm | Cutting Position | Internal |
| Cutting Direction (HAND) | Right Hand | Measurement Type | Metric |
| Coolant Supply Property (CSP) | Coolant Thru |
Product Features
| Family Description | Boring bars with steel and carbide shanks carrying DNGP 0703.. 55° rhombic inserts with negative and positive alternating flanks that enabled bar design with a firm insert clamping and small minimum diameter. | Country of Origin | Japan |
| Remarks | Use left-hand inserts on right-hand bars and vice versa. A - steel shank with coolant hole, E - carbide shank with coolant hole. |
Shipping Info
Package Weight
0.599
