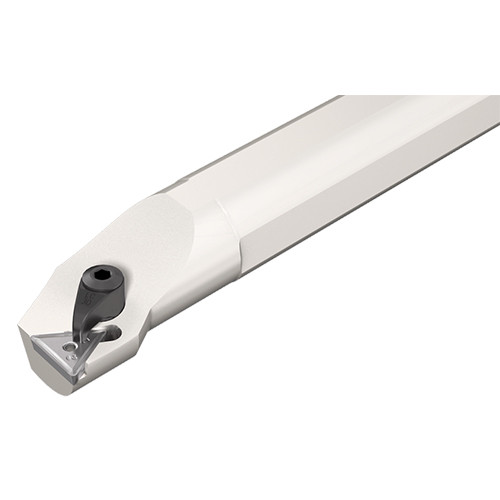

S-CTFPR 16-3
Int. Turning Tool ; 12″ OAL ; 0.921″ Shank Height ; 1″ Shank Dia. ; 12″ LF ; 1.156″ Min Bore Dia. ; Steel

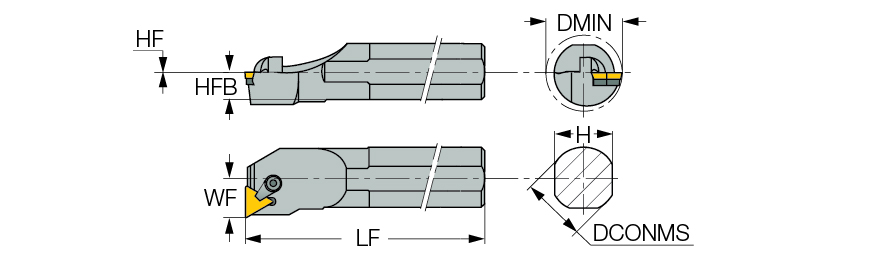

| Connection Diameter Machine Side (DCONMS) | 1″ | Shank Type | Round Shank w/3 Flats |
| Functional Length (LF) | 12″ | Application | | Int. 60° Triangle 91° Approach | |
| Overall Length (OAL) | 12″ | Rake Angle Axial (GAMP) | 0 Degrees |
| Shank Height (H) | 0.921″ | Rake Angle Radial (GAMF) | 5 Degrees |
| Functional Width (WF) | 0.58″ | Tool Type | Internal Indexble -Turn Tool |
| Master Insert Identification (MIID) | TPMR 321 | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 1.156″ | Cutting Position | Internal |
| Cutting Direction (HAND) | Right Hand | Measurement Type | Inch |
| Coolant Supply Property (CSP) | External |
Product Features
| Family Description | Clamp lock boring bars for 11° clearance triangular inserts. | Country of Origin | Israel |
Shipping Info
Package Weight
2.482
