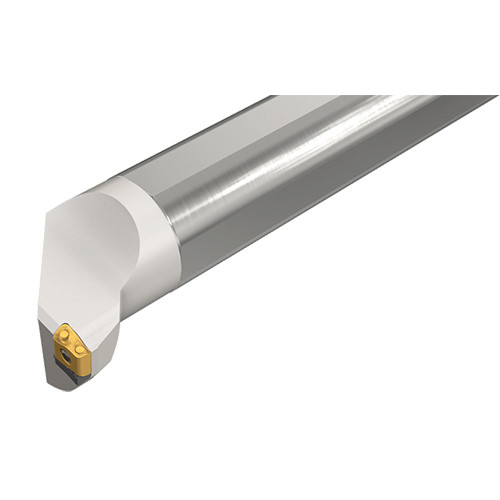

S50U SLANR-15 TANG
Int. Turning Tool ; 350 mm OAL ; 47 mm Shank Height ; 50 mm Shank Dia. ; 85 mm Min Bore Dia. ; Steel

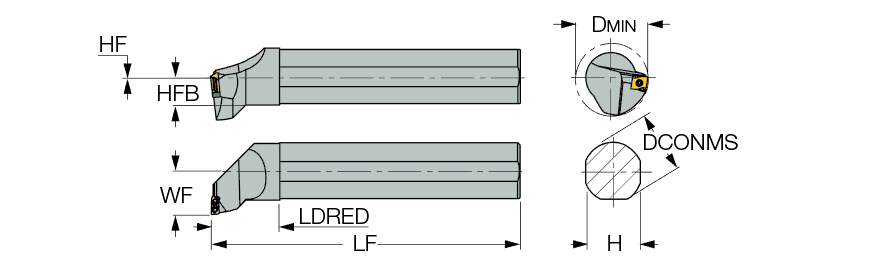

| Connection Diameter Machine Side (DCONMS) | 50 mm | Shank Type | Round Shank w/3 Flats |
| Functional Length (LF) | 350 mm | Application | | Int. Tangential 93° Approach | |
| Overall Length (OAL) | 350 mm | Rake Angle Axial (GAMP) | -6 Degrees |
| Reduced Body Diameter Length (LDRED) | 60 mm | Rake Angle Radial (GAMF) | -10.5 Degrees |
| Shank Height (H) | 47 mm | Tool Type | Internal Indexble -Turn Tool |
| Functional Width (WF) | 37 mm | Body Material | Steel |
| Master Insert Identification (MIID) | LNMX 1506.. | Cutting Position | Internal |
| Minimum Bore Diameter (DMIN) | 85 mm | Measurement Type | Metric |
| Cutting Direction (HAND) | Right Hand |
Product Features
| Family Description | Boring bars carrying LNMX tangentially screw clamped inserts with 4 cutting edges for high metal removal rates. | Country of Origin | Israel |
Shipping Info
Package Weight
11.502
