S25T MULNR-12MW
Int. Turning Tool ; 300 mm OAL ; 23 mm Shank Height ; 25 mm Shank Dia. ; 36 mm Min Bore Dia. ; Steel

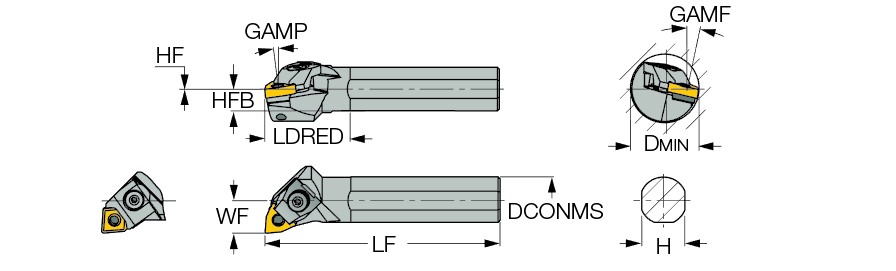

| Connection Diameter Machine Side (DCONMS) | 25 mm | Shank Type | Round Shank w/3 Flats |
| Functional Length (LF) | 300 mm | Application | | Int. 80° Diamond 95° Approach | Int. 80° Trigon 95° Approach | |
| Overall Length (OAL) | 300 mm | Rake Angle Axial (GAMP) | -6 Degrees |
| Reduced Body Diameter Length (LDRED) | 45 mm | Rake Angle Radial (GAMF) | -12 Degrees |
| Shank Height (H) | 23 mm | Tool Type | Internal Indexble -Turn Tool |
| Functional Width (WF) | 17 mm | Body Material | Steel |
| Master Insert Identification (MIID) | WM..0804/CN..1204 | Cutting Position | Internal |
| Minimum Bore Diameter (DMIN) | 36 mm | Measurement Type | Metric |
| Cutting Direction (HAND) | Right Hand |
Product Features

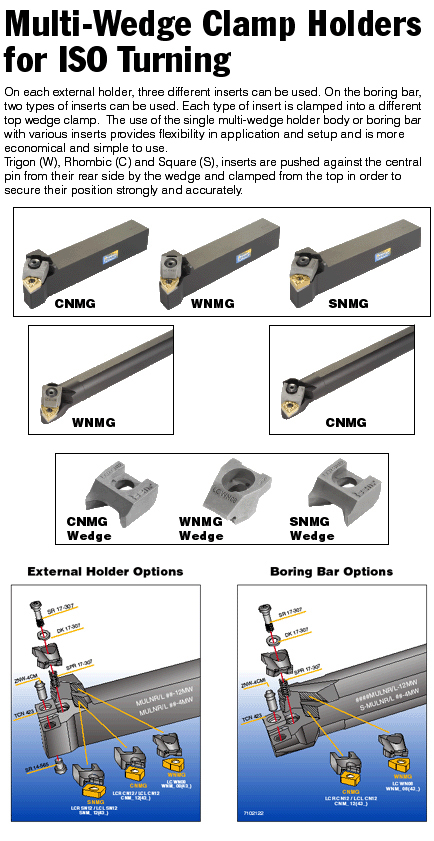

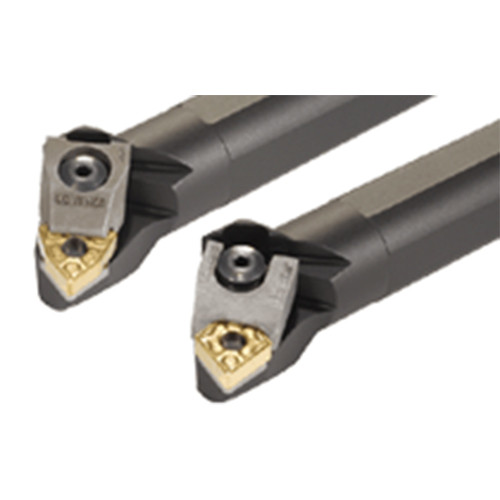

| Family Description | MULTI-WEDGE lock boring bars carrying 80° negative rhombic, trigon, or square inserts. | Country of Origin | Israel |
| Remarks | Only LC WN08 is supplied with the boring bar. The other wedges (see more info) should be ordered separately. |
Shipping Info
Package Weight
2.515
