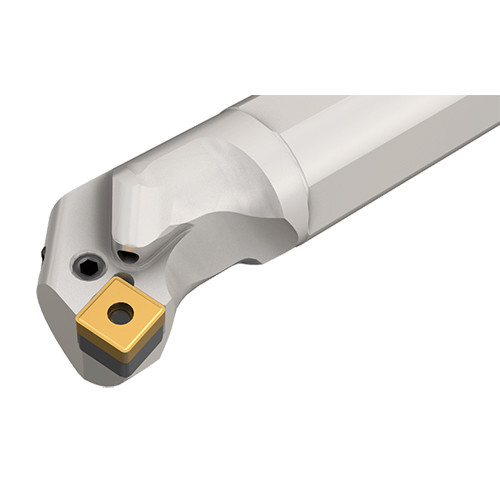

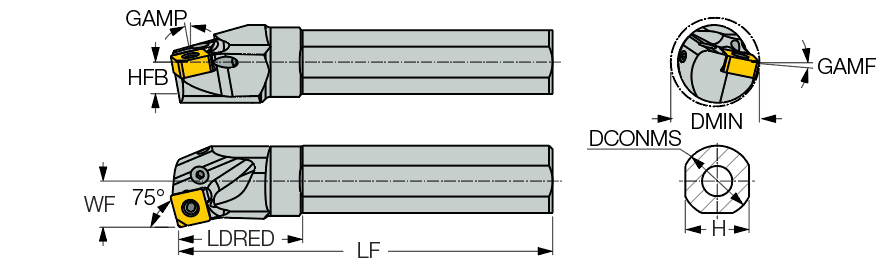

A32S PSKNL-09
| Connection Diameter Machine Side (DCONMS) | 32 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Functional Length (LF) | 250 mm | Shank Type | Round Shank w/3 Flats |
| Overall Length (OAL) | 250 mm | Application | | Int. Square 75° Approach | |
| Reduced Body Diameter Length (LDRED) | 43 mm | Rake Angle Axial (GAMP) | -6 Degrees |
| Shank Height (H) | 30 mm | Rake Angle Radial (GAMF) | -13 Degrees |
| Functional Width (WF) | 22 mm | Tool Type | Internal Indexble -Turn Tool |
| Master Insert Identification (MIID) | SNMG 0903 SNMG 0904 | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 40 mm | Cutting Position | Internal |
| Cutting Direction (HAND) | Left Hand | Measurement Type | Metric |
Product Features
| Family Description | Lever lock boring bars carrying 90° negative square inserts. | Country of Origin | Israel |
Shipping Info
Package Weight
2.985
