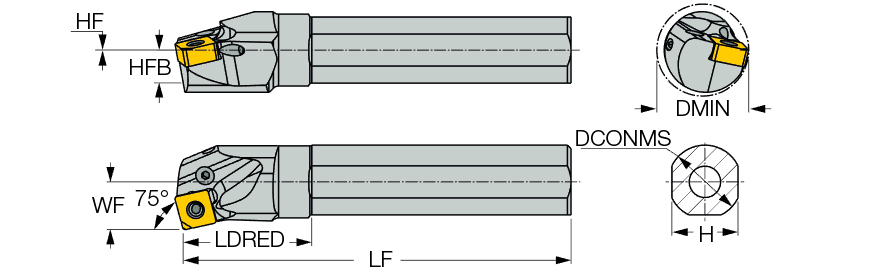

A-PSKNR 16-3
| Connection Diameter Machine Side (DCONMS) | 1″ | Coolant Supply Property (CSP) | Through Hole |
| Functional Length (LF) | 12″ | Shank Type | Round Shank w/3 Flats |
| Overall Length (OAL) | 12″ | Application | | Int. Square 75° Approach | |
| Reduced Body Diameter Length (LDRED) | 1.38″ | Rake Angle Axial (GAMP) | -15 Degrees |
| Shank Height (H) | 0.92″ | Rake Angle Radial (GAMF) | -15 Degrees |
| Functional Width (WF) | 0.64″ | Tool Type | Internal Indexble -Turn Tool |
| Master Insert Identification (MIID) | SNMG 331-M3P | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 1.26″ | Cutting Position | Internal |
| Cutting Direction (HAND) | Right Hand | Measurement Type | Inch |
Product Features
| Family Description | Lever-lock boring bars for 90° negative square inserts. | Country of Origin | Israel |
