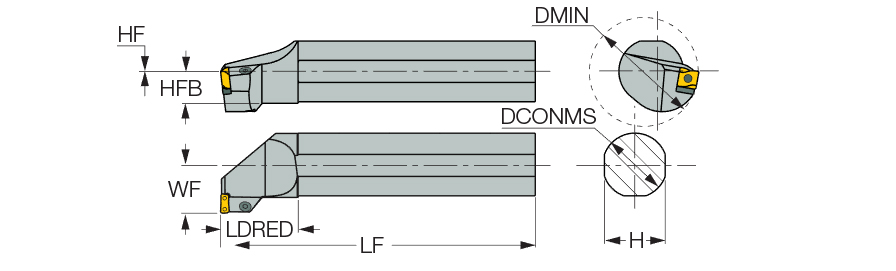

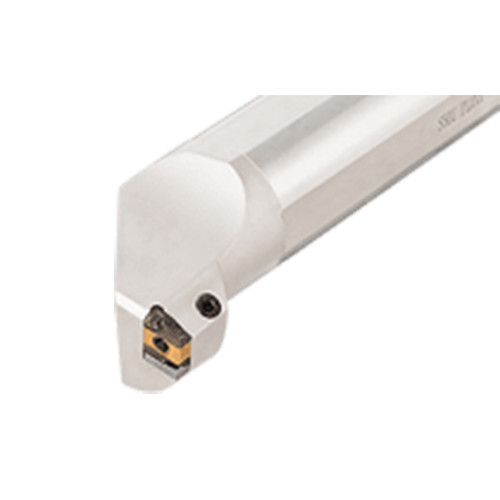

S50U PLANR-15 TANG
| Connection Diameter Machine Side (DCONMS) | 50 mm | Shank Type | Round Shank w/3 Flats |
| Functional Length (LF) | 350 mm | Application | | Int. Tangential 93° Approach | |
| Overall Length (OAL) | 350 mm | Rake Angle Axial (GAMP) | -6 Degrees |
| Reduced Body Diameter Length (LDRED) | 60 mm | Rake Angle Radial (GAMF) | -10 Degrees |
| Shank Height (H) | 47 mm | Tool Type | Internal Indexble -Turn Tool |
| Functional Width (WF) | 37 mm | Body Material | Steel |
| Master Insert Identification (MIID) | LNMX 1506... | Cutting Position | Internal |
| Minimum Bore Diameter (DMIN) | 85 mm | Measurement Type | Metric |
| Cutting Direction (HAND) | Right Hand |
Product Features
| Family Description | Boring bars carrying LNMX ... tangentially clamped inserts with 4 cutting edges for high production rates. | Country of Origin | Israel |
| Remarks | Right-hand inserts for left-hand bars. Left-hand inserts for right-hand bars. ap max for facing 3.8 mm. |
Shipping Info
Package Weight
11.228
