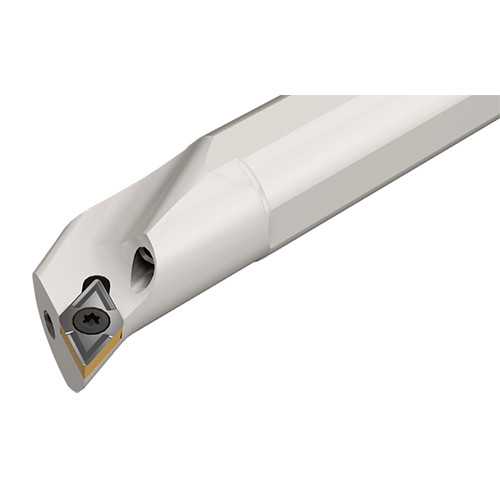

A16M SDQCL-07
Int. Turning Tool ; 150 mm OAL ; 15 mm Shank Height ; 16 mm Shank Dia. ; 20 mm Min Bore Dia. ; Steel

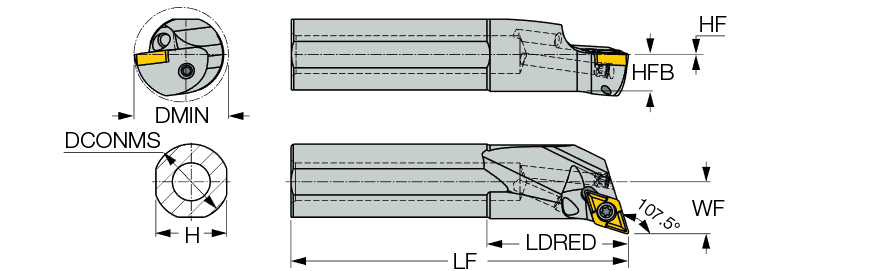

| Connection Diameter Machine Side (DCONMS) | 16 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Functional Length (LF) | 150 mm | Shank Type | Round Shank w/3 Flats |
| Overall Length (OAL) | 150 mm | Application | | Int. 55° Diamond 107.5° Approach 15.5° Clearance | |
| Reduced Body Diameter Length (LDRED) | 30 mm | Rake Angle Axial (GAMP) | 0 Degrees |
| Shank Height (H) | 15 mm | Rake Angle Radial (GAMF) | -7 Degrees |
| Functional Width (WF) | 11 mm | Tool Type | Internal Indexble -Turn Tool |
| Master Insert Identification (MIID) | DCGT 070202 | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 20 mm | Cutting Position | Internal |
| Cutting Direction (HAND) | Left Hand | Measurement Type | Metric |
Product Features
| Family Description | Steel shank with coolant hole screw lock boring bars for 55° rhombic inserts with 7° clearance. | Country of Origin | Israel |
Shipping Info
Package Weight
0.428
