A10K SWLNR-04
Int. Turning Tool ; 125 mm OAL ; 9 mm Shank Height ; 10 mm Shank Dia. ; 12 mm Min Bore Dia. ; Steel

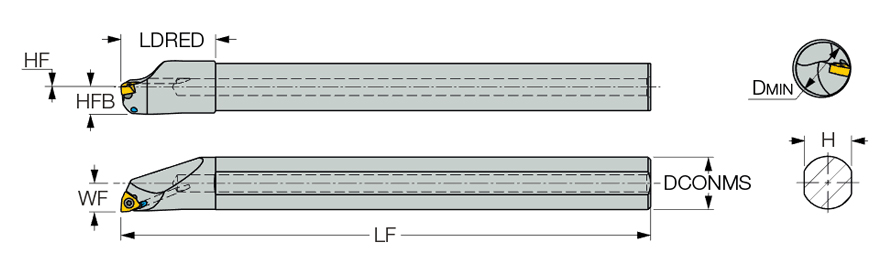

| Connection Diameter Machine Side (DCONMS) | 10 mm | Shank Type | Round Shank w/3 Flats |
| Overall Length (OAL) | 125 mm | Application | | Int. 80° Trigon 95° Approach | |
| Reduced Body Diameter Length (LDRED) | 20 mm | Rake Angle Axial (GAMP) | -10 Degrees |
| Shank Height (H) | 9 mm | Rake Angle Radial (GAMF) | -16 Degrees |
| Functional Width (WF) | 6 mm | Tool Type | Internal Indexble -Turn Tool |
| Master Insert Identification (MIID) | WNGP 040302L-F2M | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 12 mm | Cutting Position | Internal |
| Cutting Direction (HAND) | Right Hand | Measurement Type | Metric |
| Coolant Supply Property (CSP) | Coolant Thru |
Product Features
| Family Description | Boring bars with steel and carbide shanks for small diameters, carrying WNGP 0403.. trigon inserts with negative and positive alternating flanks that enabled bar design with a firm insert clamping and small minimum diameter. | Country of Origin | Japan |
| Remarks | Use left-hand inserts on right-hand bars and vice versa. A - steel shank with coolant hole, E - carbide shank with coolant hole. |
Shipping Info
Package Weight
0.187
