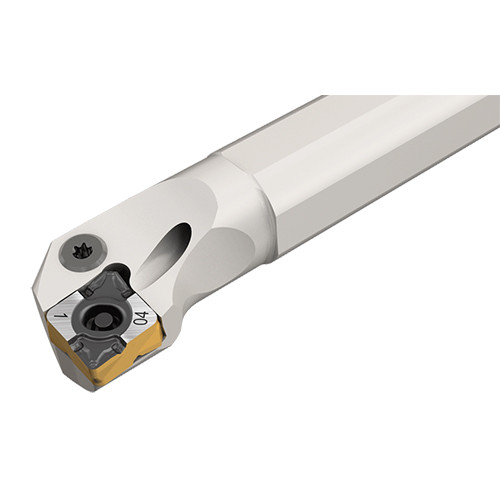

A-PCLXL 12-3X

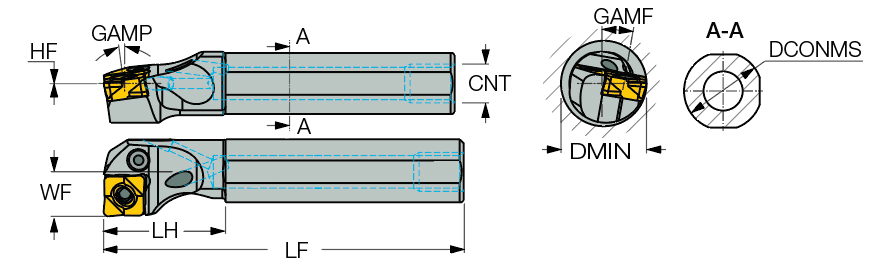

| Connection Diameter Machine Side (DCONMS) | 3/4″ | Coolant Supply Property (CSP) | Coolant Thru |
| Functional Length (LF) | 7″ | Shank Type | Round Shank w/3 Flats |
| Head Length (LH) | 1.18″ | Application | | Int. 80° Diamond 95° Approach | |
| Shank Height (H) | 0.676″ | Rake Angle Axial (GAMP) | 8 Degrees |
| Functional Width (WF) | 0.512″ | Rake Angle Radial (GAMF) | 10 Degrees |
| Master Insert Identification (MIID) | CXMG 09.. | Tool Type | Internal Indexble -Turn Tool |
| Minimum Bore Diameter (DMIN) | 1″ | Body Material | Steel |
| Cutting Direction (HAND) | Left Hand | Measurement Type | Inch |
Product Features
| Family Description | Lever lock boring bars carrying CXMG 80° rhombic inserts, for heavy internal turning applications. | Country of Origin | Israel |
Shipping Info
Package Weight
0.718
