CFSPR051W16 INDEXABLE

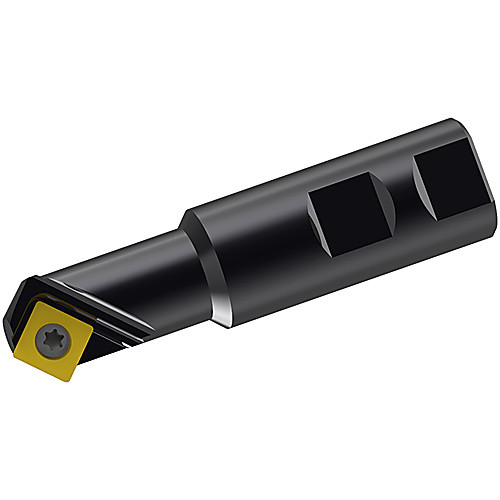

Indexable End Mill; 0.313″ Dia. × 0.327″ LOC × 1″ Shank Dia. ; 45 Degrees ; Series CFSP_INCH
| Cutting Diameter (DC/DCX) | 0.313″ | Body Diameter (BD) | 0.768″ |
| Cutting Diameter (DC) | 0.313″ | Tool Cutting Edge Angle (KAPR) | 45 Degrees |
| Cutting Item Count (CICT) | 1 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 0.327″ | Series/List # | CFSP_INCH |
| Connection Diameter Machine Side (DCONMS) | 1″ | Measurement Type | Inch |
| Head Length (LH) | 1.719″ | Cutting Diameter Maximum (DCX) | 0.964″ |
| Functional Length (LF) | 4″ |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.4
