A20U-HDZNR-3.53.5

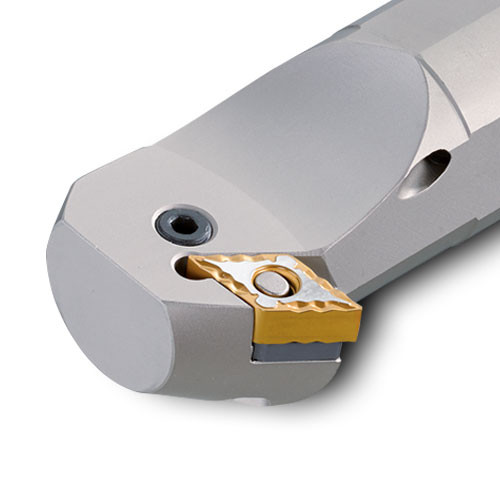

Int. Turning Tool ; 14.787″ OAL ; 1.169″ Shank Height ; 1-1/4″ Shank Dia. ; 14″ LF ; 1-3/4″ Min Bore Dia. ; Steel
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Coolant Supply Property (CSP) | Coolant Thru |
| Functional Length (LF) | 14″ | Shank Type | Round Shank w/3 Flats |
| Overall Length (OAL) | 14.787″ | Frontal Edge Angle | 93 Degrees |
| Shank Height (H) | 1.169″ | Body Material | Steel |
| Functional Width (WF) | 1″ | Style | HDZNR |
| Minimum Bore Diameter (DMIN) | 1-3/4″ | Measurement Type | Inch |
| Cutting Direction (HAND) | Right Hand |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Weight
4.685
