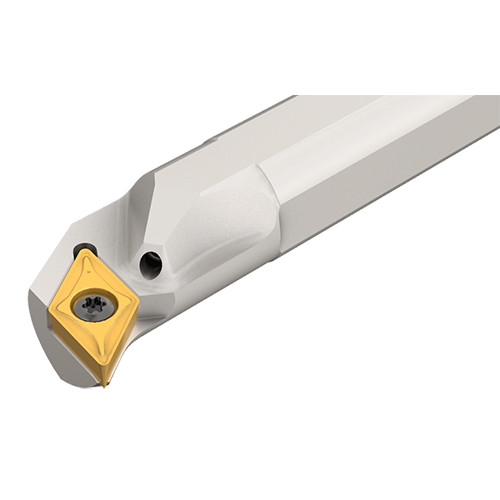

A20R SDUCL-13-SL
Int. Turning Tool ; 200 mm OAL ; 18 mm Shank Height ; 20 mm Shank Dia. ; 25 mm Min Bore Dia. ; Steel

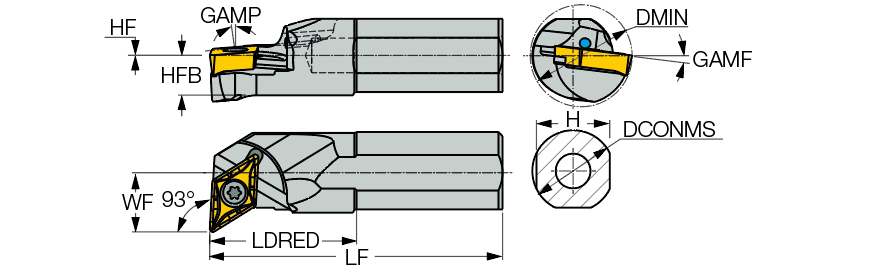

| Connection Diameter Machine Side (DCONMS) | 20 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Functional Length (LF) | 200 mm | Shank Type | Round Shank w/3 Flats |
| Overall Length (OAL) | 200 mm | Application | | Int. 55° Diamond 93 95° Approac | |
| Reduced Body Diameter Length (LDRED) | 36 mm | Rake Angle Axial (GAMP) | 0 Degrees |
| Shank Height (H) | 18 mm | Rake Angle Radial (GAMF) | -7 Degrees |
| Functional Width (WF) | 14.5 mm | Tool Type | Internal Indexble -Turn Tool |
| Master Insert Identification (MIID) | DCMT 13T5-SL | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 25 mm | Cutting Position | Internal |
| Cutting Direction (HAND) | Left Hand | Measurement Type | Metric |
Product Features
| Family Description | Screw lock boring bars carrying 55° rhombic inserts with 7° clearance angle. A long groove on the pocket and a matching ridge at the insert bottom ensure high rigidity in profiling applications. | Country of Origin | Israel |
Shipping Info
Package Weight
0.869
